Interactive Set-Up
86 AX3000 Models 90 - User's Manual
Serial and TCP/IP screen sessions can be used at the same time.
For more information see Chapter 8.1.2 (sub-section d).
3.5.6 - Other Uses
a) Using rtty
With the rtty service, the AX3000 acts as a server. The AX3000 "listens" on a
given TCP port. Then, a connection can be established from a Windows or Unix
box to send or received data.
Note: the rtty service can also be used with the Axel daemon (axttyd) under
UNIX (see Chapter 8.4).

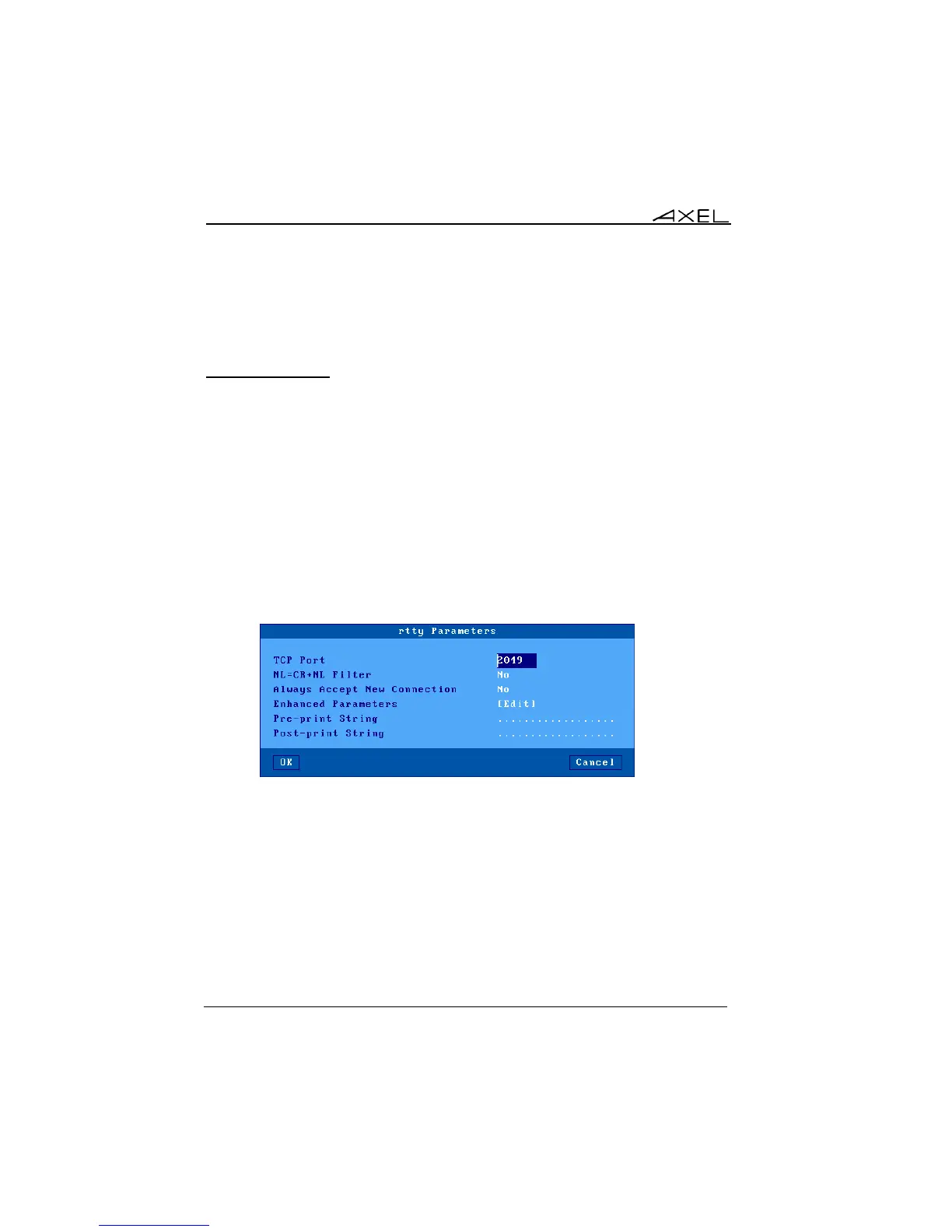

To set the rtty service on the port, enter the following parameters in the
[Configuration]-[Ports]-[xxx]-[yyy] dialog box:
- Service: select rtty.
- Parameters: the following box is displayed:
- Port TCP: numeric value associates to this auxiliary port.
- NL=CR+NL Filter: The line feed character (0Ah) can be mapped to
carriage return + line feed (0Dh + 0Ah),
- Always Accept New Connection: set the AX3000 behavior when an
rtty connection is already established and a second connection rtty is
received.
- Enhanced parameters: see Appendix A.7.3.
- Pre-print String: character string sent before the printing.
- Post-print String: character string sent after an the printing (for
example "\0C" is a form feed)
