Axel AX3000 User Manual

Installing under UNIX/LINUX
214 AX3000 Models 90 - User's Manual

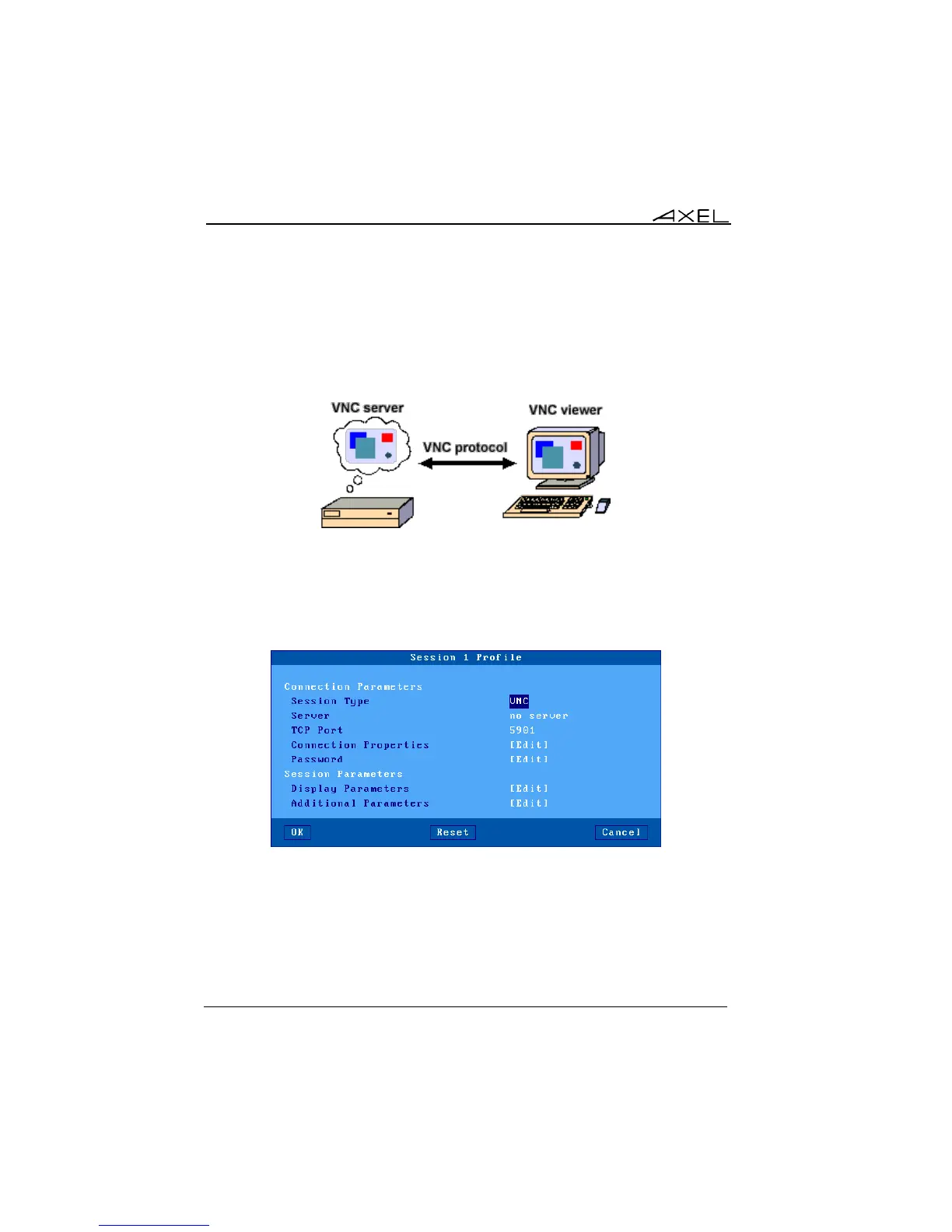

8.2 - GRAPHICAL MODE SESSION (VNC)
The VNC protocol enables a remote graphical display on the Axel-VNCviewer.
The image is constructed, maintained and updated within the Unix server’s
frame buffer, and transmitted across the TCP/IP network.
Note: this protocol is public and the associated software is free. For more
information please see http://www.realvnc.com/
To set-up a VNC session, select [Configuration]-[Sessions]-[Session X]
(where X is the session number). The following dialog box is displayed:
Set the following parameters:
- Session Type: select 'VNC'
- Server: selected from the server table (see Chapter 3.1.4). A new server
can be added by selecting 'IP address' or 'Server Name'.
- TCP Port: numeric value associated with the display (see Chapter 8.2.2).

Axel AX3000 Specifications

General

Brand	Axel
Model	AX3000
Category	Server
Language	English
