Tools and Statistics
AX3000 Models 90 - User's Manual 233
9.2.2 - With bootp/tftp Protocols

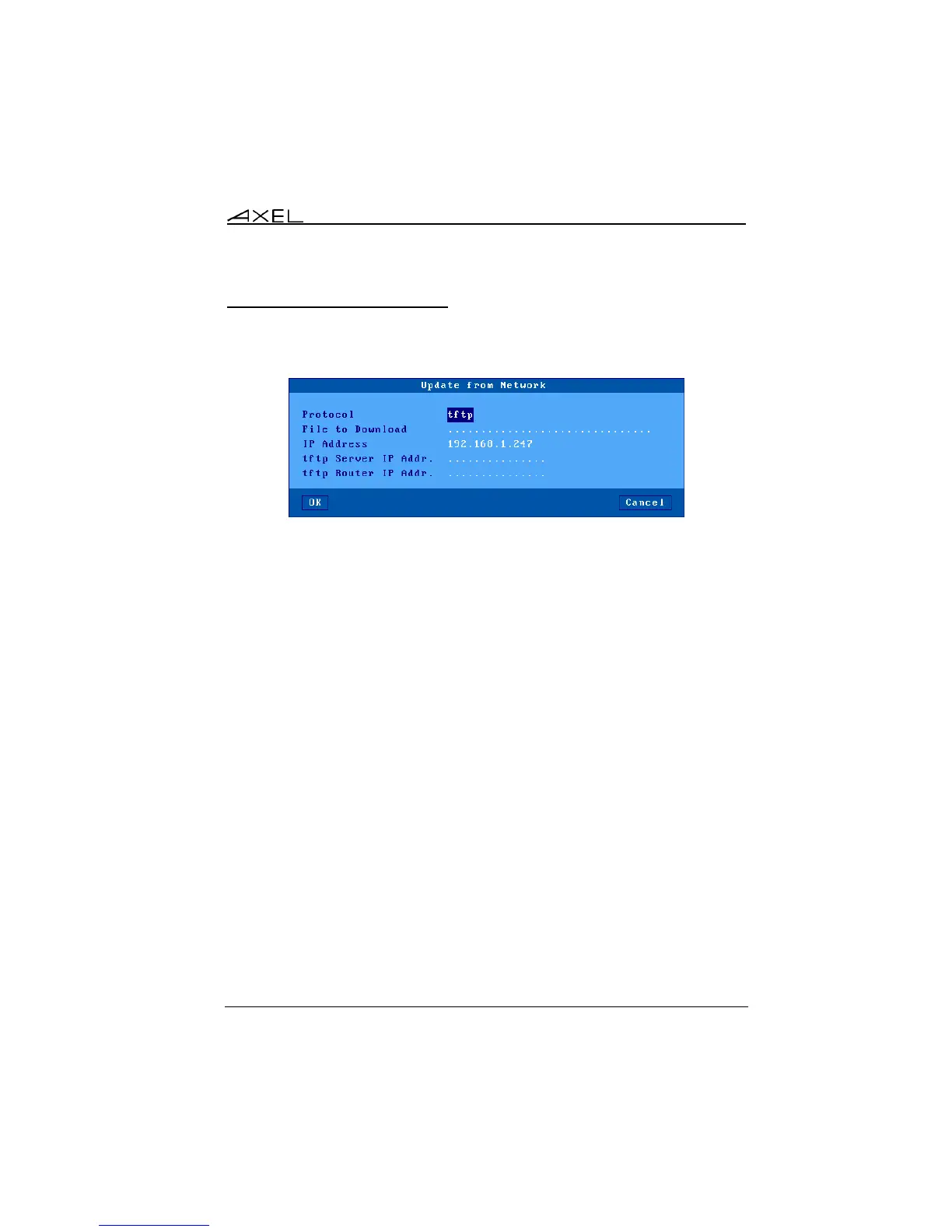

Select the [Upgrade]-[Firmware]-[Update from Network] menu from the
AX3000 set-up. The following box is displayed:
Firmware can be updated in one of two ways:
- tftp protocol: the operator must enter the location of the firmware file.
- bootp and tftp protocol: this is an automatic procedure. The necessary
parameters will already be available from a bootp server.
Note: AxRM can act as a bootp/tftp server
IMPORTANT: the thin client will automatically reboot to perform this operation.
9.3 - THE PING COMMAND
The ping command is used to check for the presence of a live TPC/IP device.
Select the [Diagnostics]-[Ping] dialog from the AX3000 set-up, then select the
server name from the list or enter the IP address or the DNS name of the
server.
9.4 - CONNECTION MANAGEMENT
Connection failures are often caused by incorrect settings.
To Next Page
