Installing under OS/400

166 AX3000 Models 90 - User's Manual

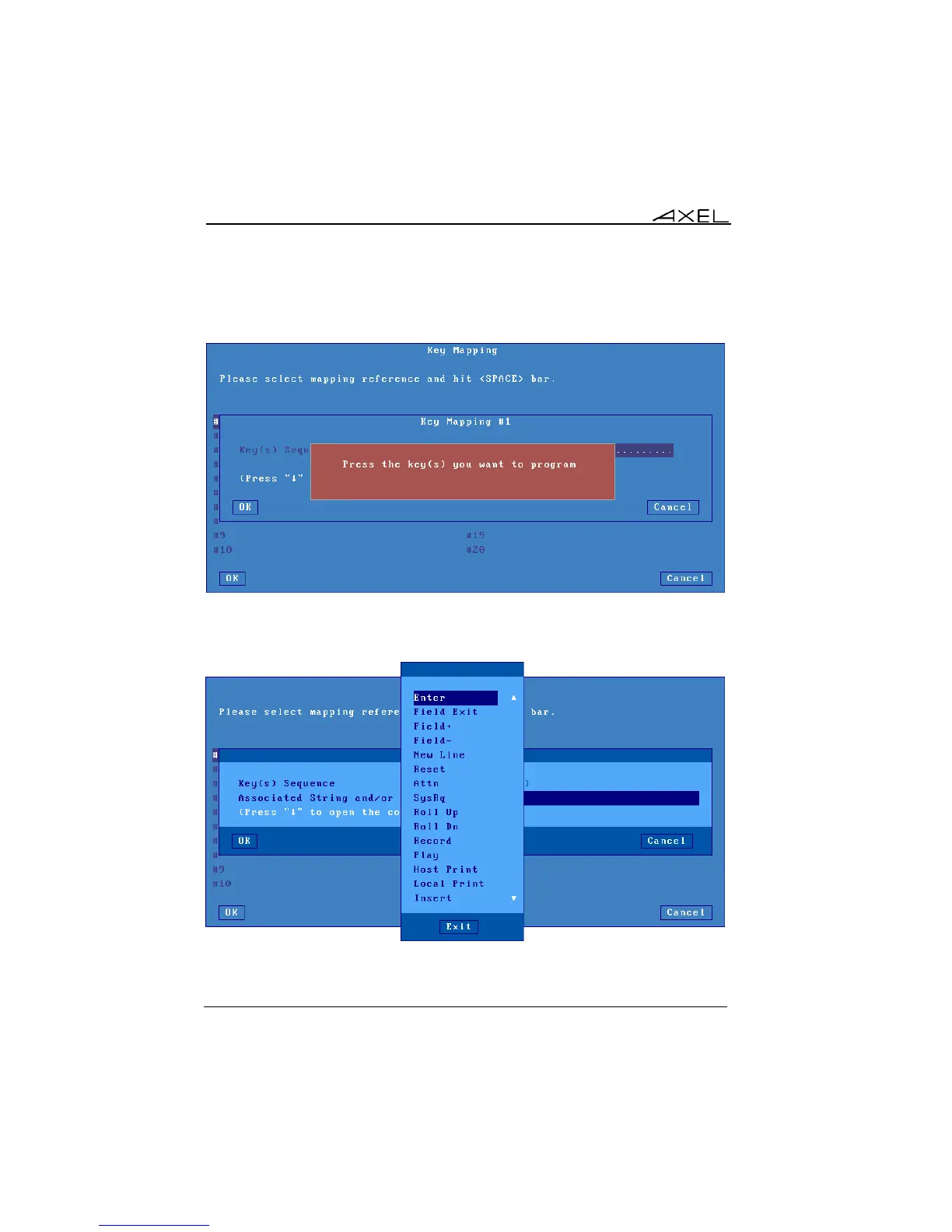

To program a new sequence (or to modify an existing one) select the sequence

number. The following dialog box is displayed:

Enter the keystroke to be remapped. Then enter a character string and/or press

<Down Arrow> to select through a list the associated 5250 function.
