Installing under OS/390

AX3000 Models 90 - User's Manual 189

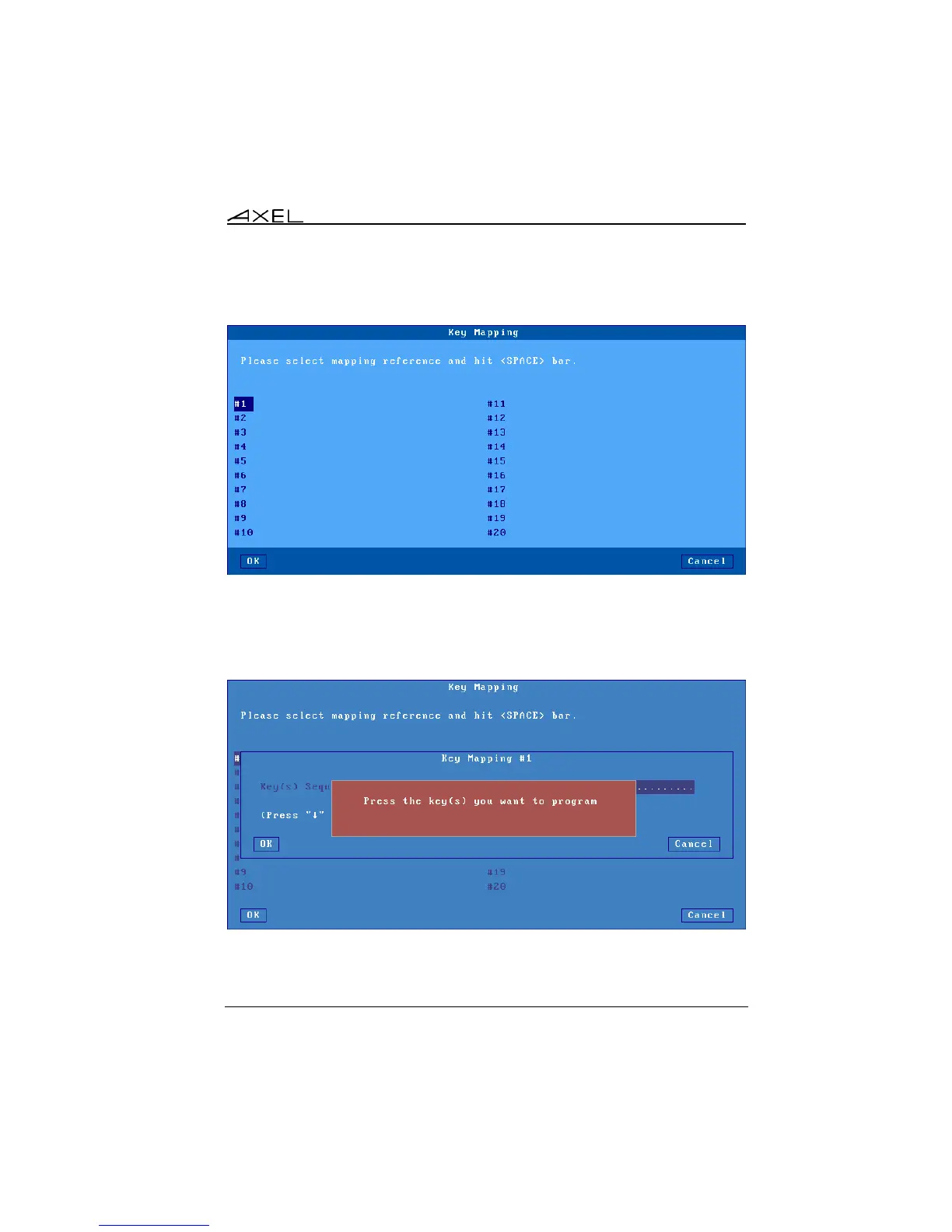

The following box is displayed:

Up to 20 sequences can be remapped (from #1 to #20).

To program a new sequence (or to modify an existing one) select the sequence

number. The following dialog box is displayed:
