Positioning the Starling Monitor
Mounting the Monitor on the Roll Stand
To provide optimal, secure and convenient positioning of the Starling Monitor within the clinical
environment, use of the optional Roll Stand is recommended.
 To Mount the Monitor on the Roll Stand
1. Make sure the Monitor is in shut-down mode and that the AC Power cable has been
disconnected from the system.
2. If currently connected, disconnect the Starling Patient Cable, NIBP air hose and SPO
2
cable.
3. Lift the Monitor and holding it carefully, align the Monitor mounting bracket with the
Roll Stand mounting bracket (see Figure 4-1).
4. Using the screws provided, fasten the Monitor securely onto the Roll Stand.
5. Check that the Monitor is now securely fastened in position on the Roll Stand, as
shown in the examples in Figure 4-2.

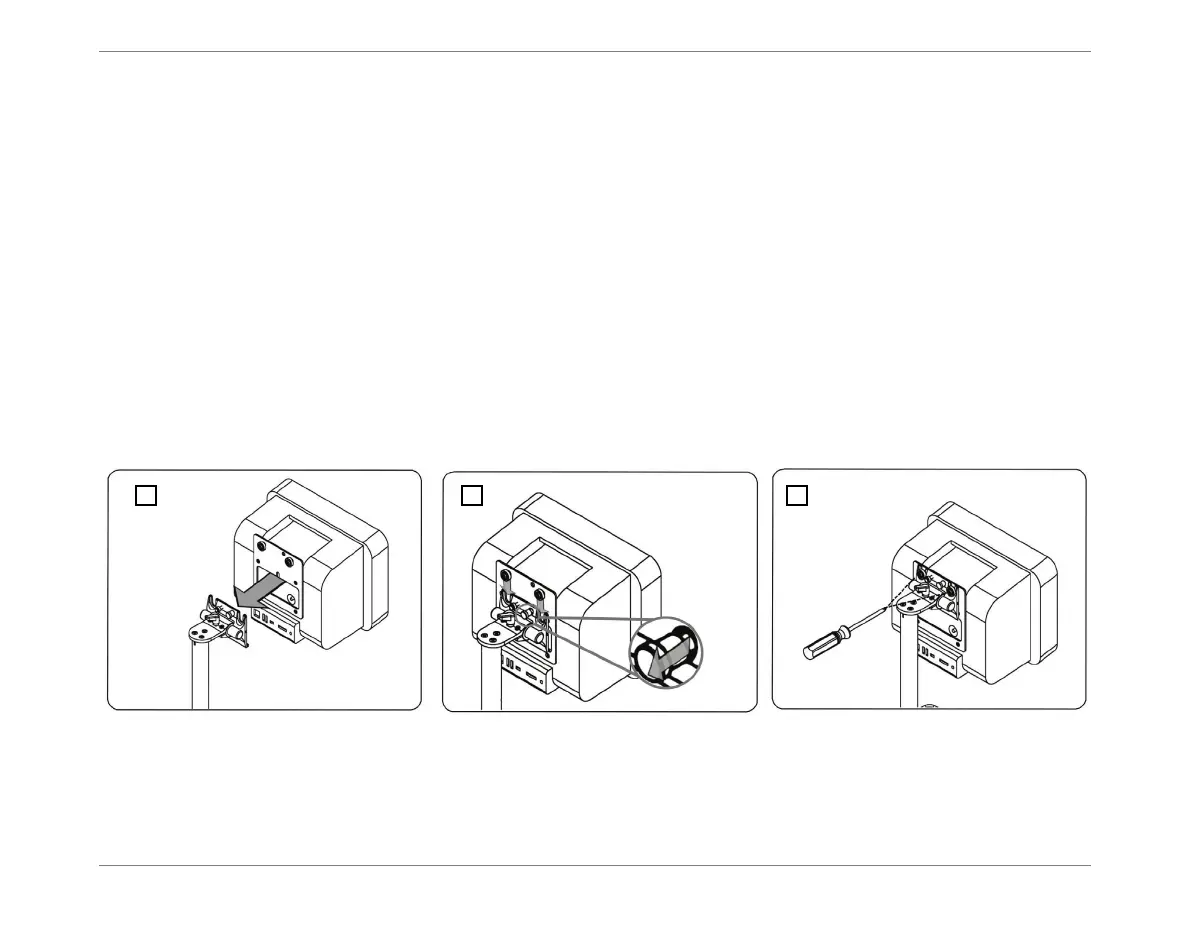

Figure 4-1 Mounting the Monitor on the Roll Stand
