System Configuration
NIBP Module
The NIBP Module is supplied as a standard accessory, together with the Starling Monitor.
The NIBP Module of the Starling device is an oscillometric blood pressure system. The module
is designed to take blood pressure measurements on demand. After each blood pressure
measurement, the Module will discard the previous blood pressure results. All Module
operating parameters will reset to default values at power-up. All Module blood pressure values
are discarded when the Module is reset.
The NIBP Module is supplied with a dedicated NIBP cuff, available in a range of sizes (listed in
Table C-1 on page C-7).
Connection of the NIBP air hose to the Monitor is by way of the NIBP air hose connection socket
on the Monitor side panel
.

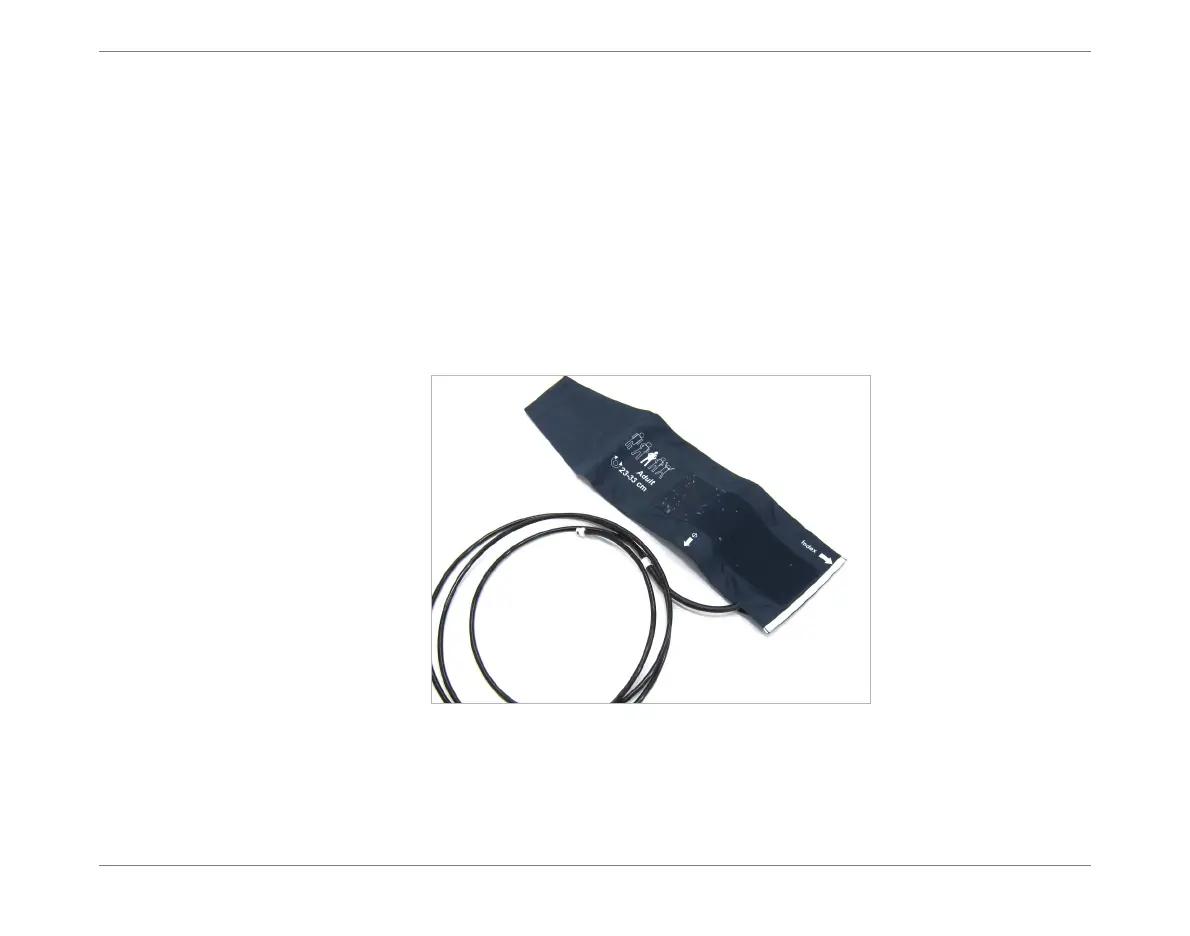

Figure 2-10 NIBP Cuff with Air Hose
