5-16
Starling
Monitor - User Guide
Monitoring a Patient
Note
In the Real-time Values area, an icon will be
displayed indicating th
e time until the next
Internal NIBP measurement (in accordance with the currently-
selected NIBP Time Interval):

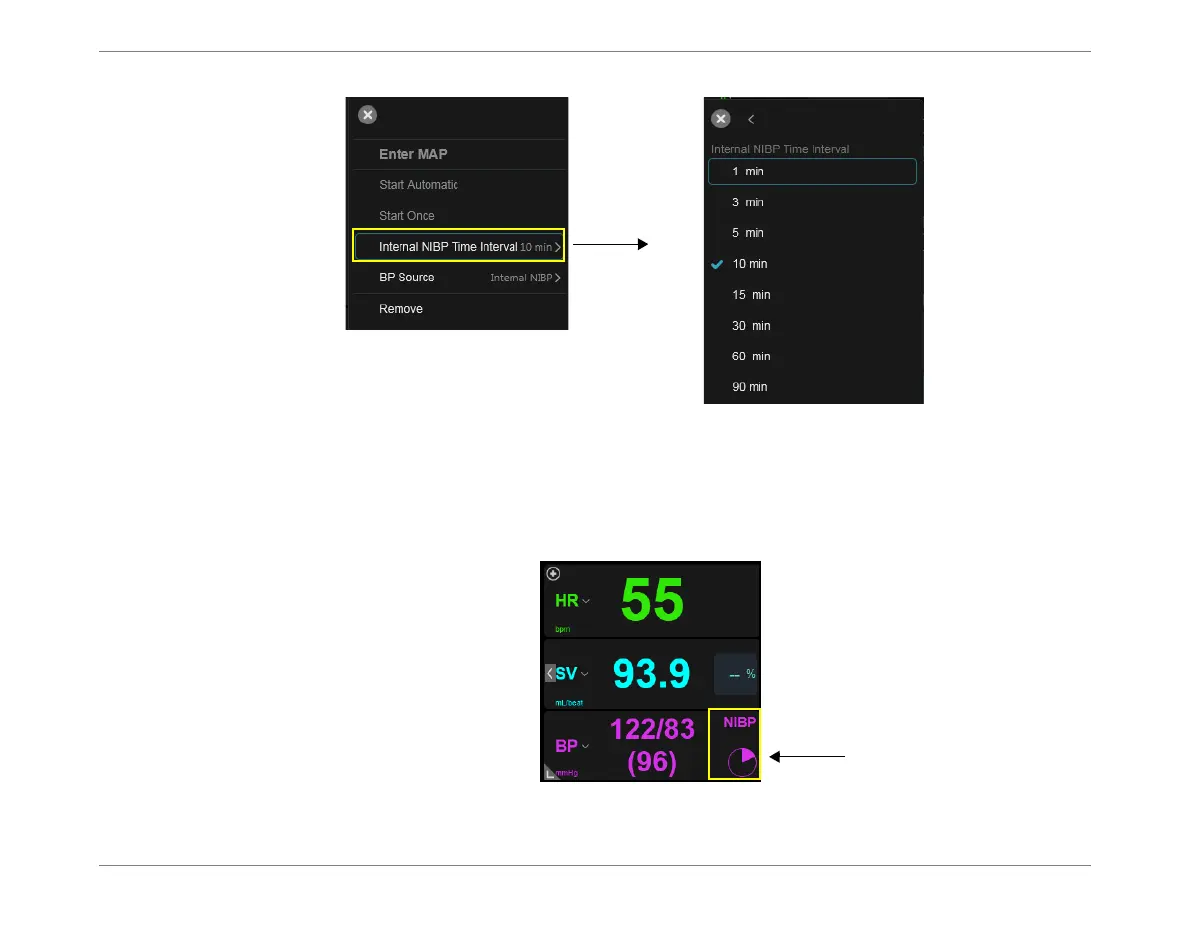

Figure
5-13
Setting In
ternal NIBP
Time Interv
al
Figure
5-1
4
Time Indicator for
Next Internal NIBP
Measurement
151
