2-18 Starling Monitor - User Guide
System Configuration
Accessories - Standard
AC Power Cable
The Starling Monitor is supplied with its own dedicated AC power cable for connection to the
mains power. Use only this cable - see the Warnings shown in Grounding on page 1-4.
Starling Patient Cable
The Starling Patient Cable is specially designed for use with the Starling Monitor, for
connection of the Starling Sensors to the Monitor.
The cable is 2.75 m (9 ft) long. One end has an integrated connector designed for connection
to the Patient Cable port on the Monitor side panel (shown above); the other end is split into
two connectors (colored red and black, respectively) for attachment of the Starling Sensor
leads (connectors also color-coded red and black).
Note For more details, see Connecting the Starling Patient Cable on page 4-10.

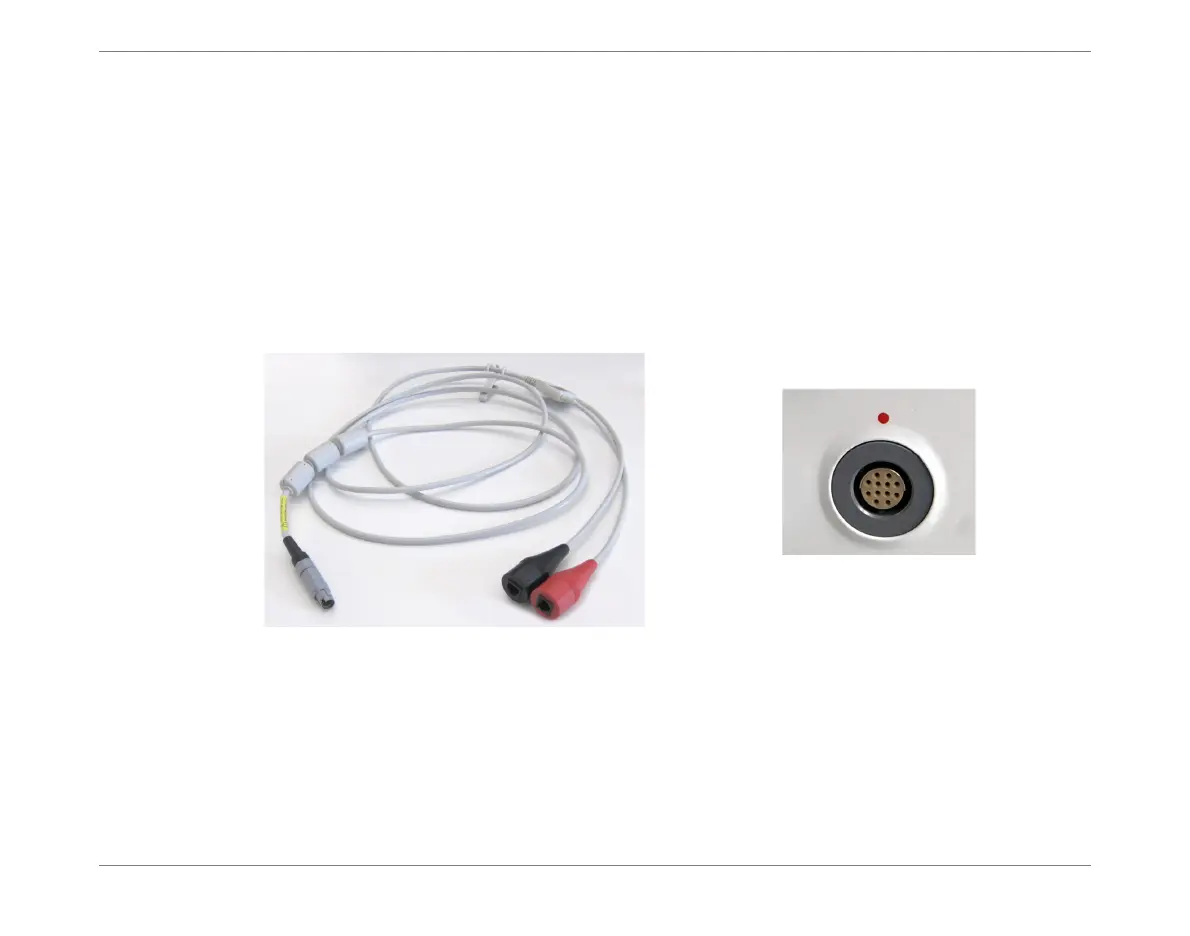

Figure 2-9 Starling Patient Cable
Starling Patient Cable Connector
on Monitor
