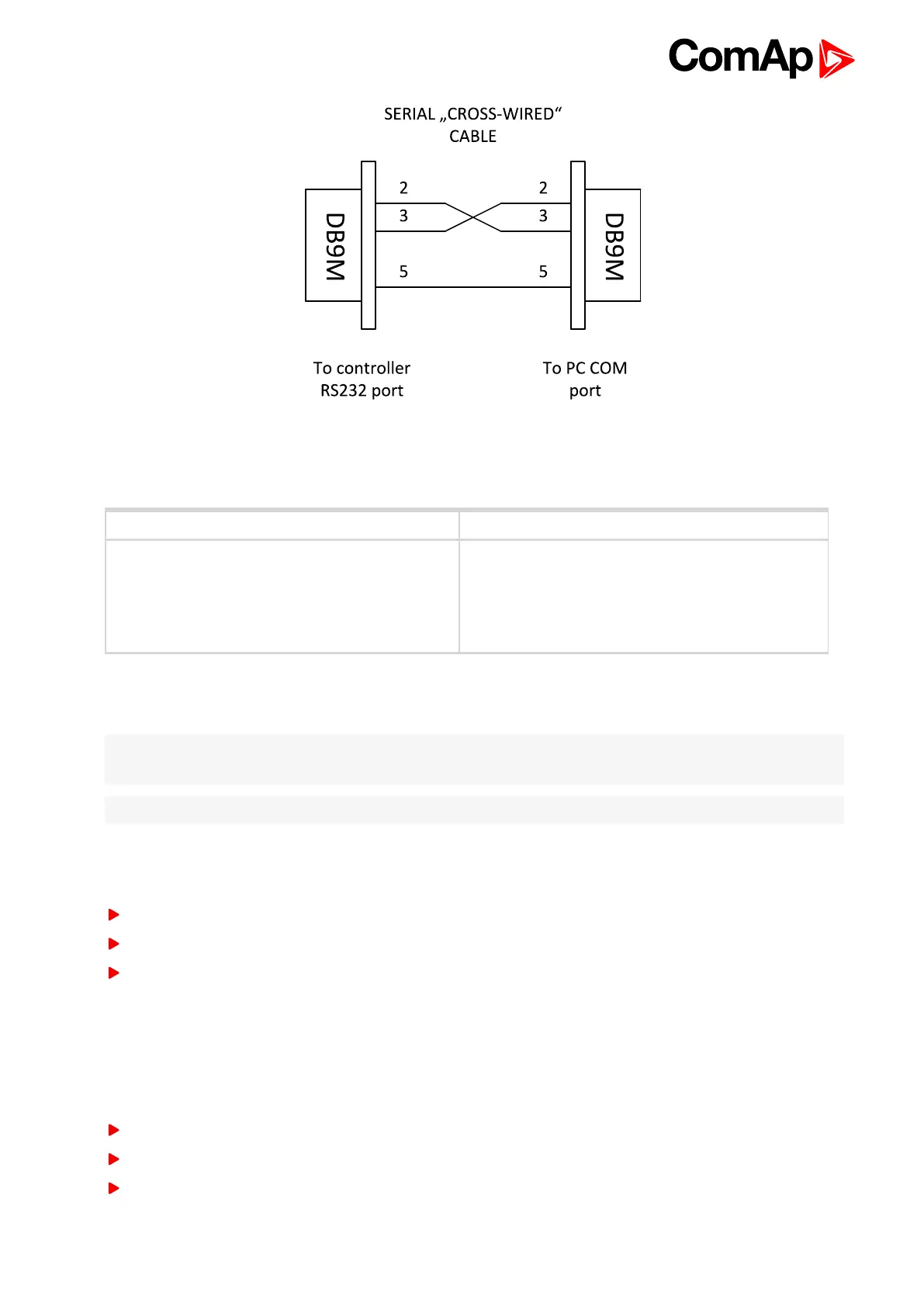

InteliDrive DCU Marine - 3.0.0 Global Guide
20
2.2.4 DriveConfig
Standard installation pack contains following controller file types:
Firmware Application file (archive)
ID-DCU-MARINE-3.0.0.mhx
DCU-MARINE-AUX-3.0.0.aid
DCU-MARINE-EME-3.0.0.aid
DCU-MARINE-CMB-3.0.0.aid
DCU-MARINE-PRP-3.0.0.aid
Delivered controller contains firmware and default configuration. Any Application file can be modified by
customer using DriveConfig PC software. It is possible to download Application file from the controller, modify it
and download back. There must be corresponding version of Application file with firmware in controller.
Note: Configuration aid file does not contain the History record when had been read from the InteliDrive
controller by DriveConfig.
Note: To load History file from InteliDrive use InteliMonitor software only.
Application file - archive
There exists one binary type of configuration file only. Config file “*.aid” contains:
Complete I/O configuration (include extension modules if any)
Setpoints setting
All available languages
Configuration file can be opened (Open file or Load from ID) modified and stored to the PC (Save, Save as) or
downloaded to Controller (Store to ID).
DriveConfig functions
Tool for ID-DCU MARINE controller and extension modules configuration
Extension modules addressing
All I/O function or protection configuration
Setpoints adjusting
