InteliDrive DCU Marine - 3.0.0 Global Guide
71
4.4.4 IS-BIN 16/8

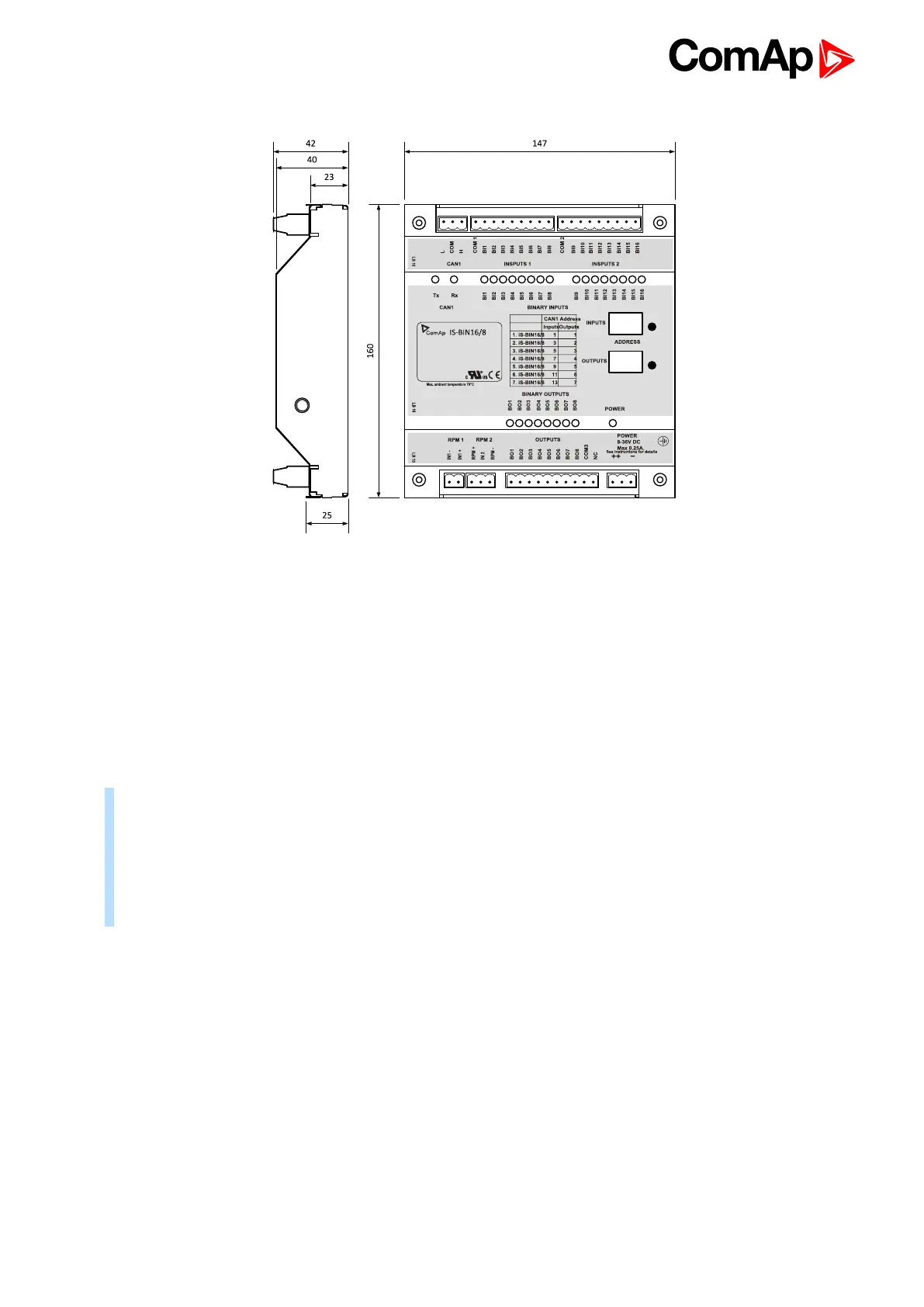

Image 4.8 Dimensions of IS-BIN 16/8
IS-BIN 16/8 unit can be mounted on DIN rail (35 mm). All dimensions are in mm.
4.4.5 Inteli AIO9/1
Due higher number of inputs (9) module occupy 2 positions = e.g. AnalogInput 1+AnalogInput 2
Temperature compensation is strictly fixed to module position (in general meaning is position equal module
address). ID-DCU-Marine support compensation of cold end up to 4 modules. In case AIO9/1 temperature
compensation could be used only for 2 units = 2 modules multiple 2 occupied positions gives 4 modules in total.
Example: of most effective configuration
Address 1: AIN8(TC) module Thermo(nc)
Address 2: AIO9/1 module Thermo(nc)
another position 3 is ocuppied by 9th input
Address 4: AIO9/1 module Thermo(nc)
another position 5 is ocuppied by 9th input
