4.4.9 InternetBridge-NT

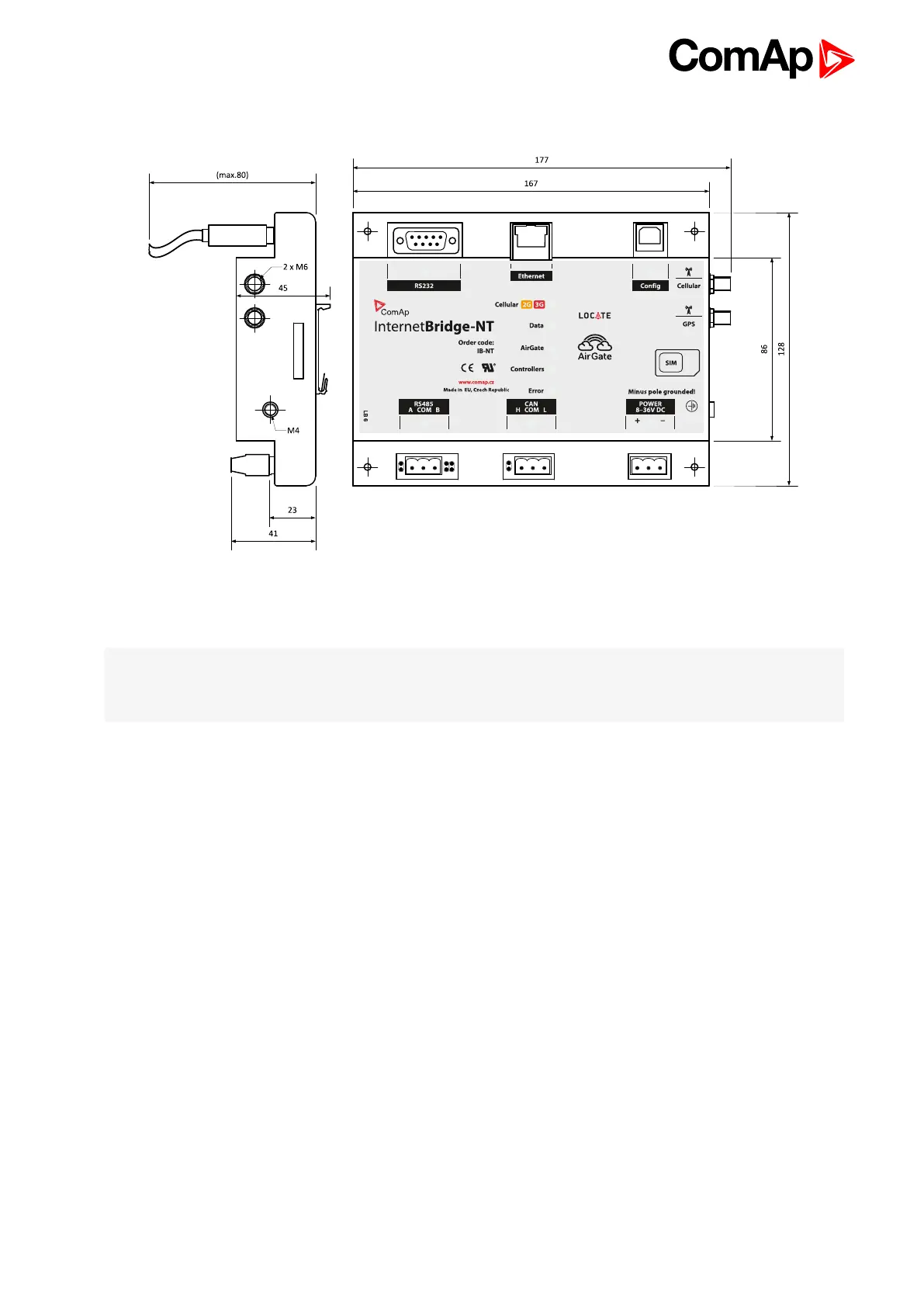

Image 4.13 Dimensions of IB-NT
All dimensions are in mm.
Note: Connect ID DCU HW 2.0 and newer + ID-COM with RS485 connected to IB-NT over RS485 works fine.
But: only one couple of balancing resistors has to be added on the whole RS485 line, and setpoint in ID-DCU
CommSet called RS485 TermCSpd (page 122) has to be set to 57600 bps.
