4.3.10 ID-DCU MARINE Analog inputs software configuration
Note: ID-DCU MARINE hardware jumper must correspond with software configuration.
Configuration

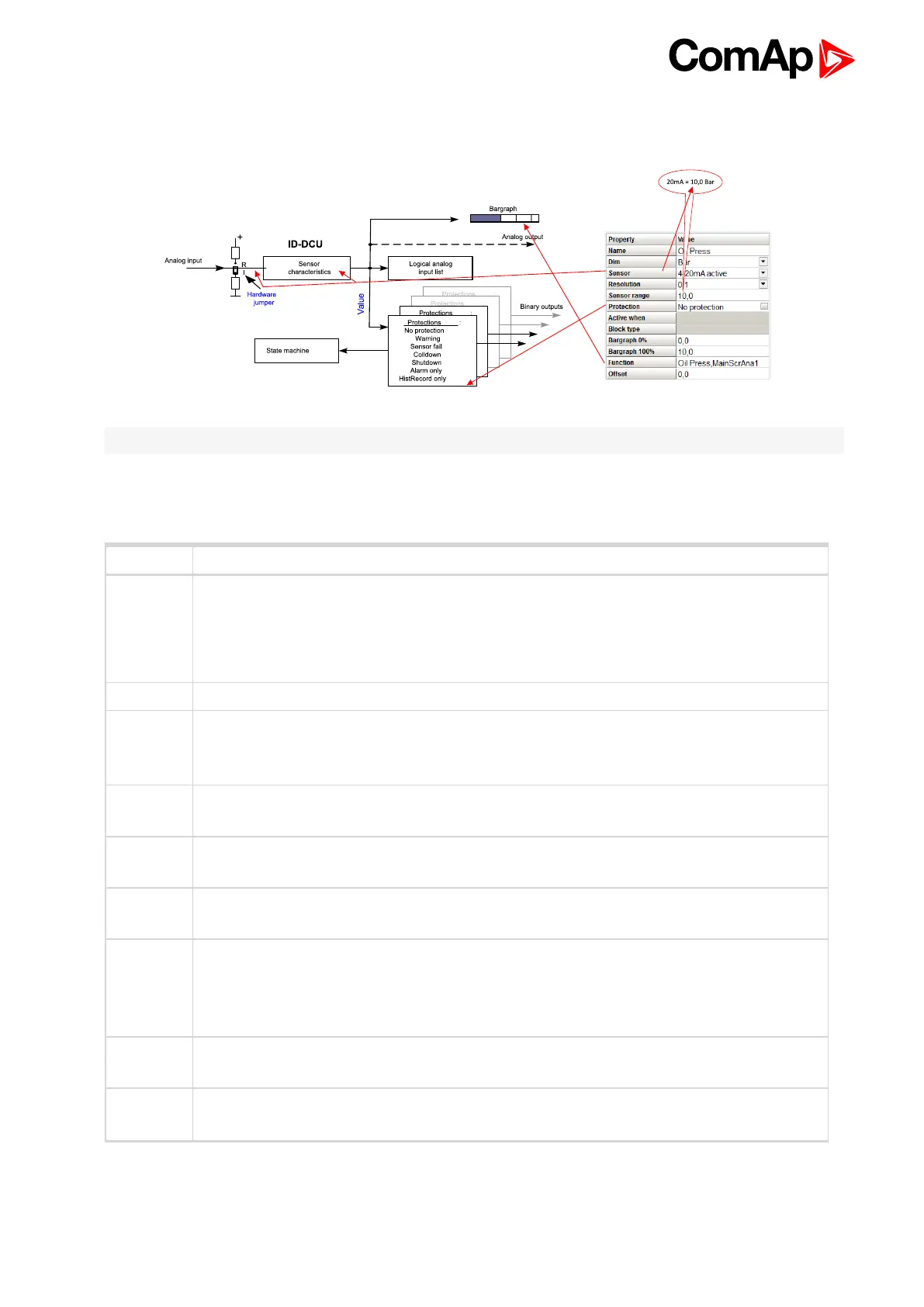

See drawing above
Property Value
Name
Value name is displayed on the screens and in the Alarm list and History record.
Enter up to 14 ASCII characters.
Name is automatically set to Function name if function is selected from the Logical function
list see Function item.
Dim Dimension is displayed on the screens. Select dimension from the list or add a new one.
Sensor
Select sensor from the list or create a customer sensor characteristics in User sensor
window. There must be corresponding analog input hardware jumper setting in InteliDrive
controller. See Sensor availability in table below.
Resolution
Output value (reading) resolution. DriveConfig indicates when Resolution is out of the value
range.
Sensor
range
Full output value (reading) range for 20 mA (current), 250 Ω, 2400 Ω (resistive), 1 V, 4V, 5V,
100 mV (voltage) sensor.
Protection
Select from the list. Configure two protection levels as standard or more levels (window)
protection in Expert mode.
Active
when
Configure direction Over or Under limit when protection is activated. Options "Under
limit+Fls" and "Over limit+Fls" means that the protection is activated in case of Analog Input
value is Under/Over the protection limit or in case that non valid value (####) is indicated on
the Analog Input.
Block type
Configure protection activity: All the time or Engine running with three different adjustable
delays when protectioln is active after engine start (RPM > Starting RPM).
Bargraph
0%
Bargraph starting value.
