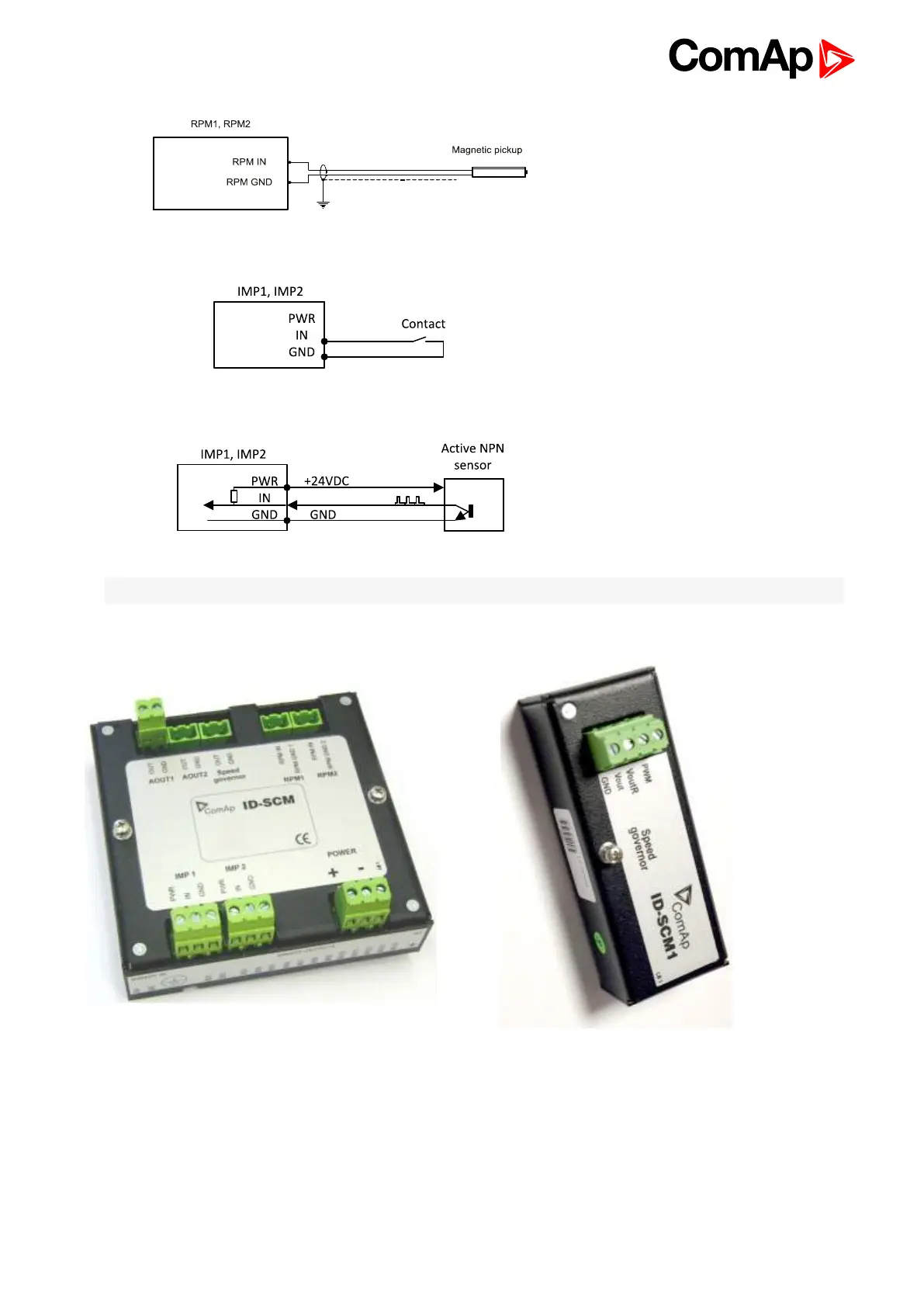

Magnetic pickup wiring to
RPM1 and RPM2 inputs.
Contact sensor wiring to
IMP1 and IMP2 inputs.
Active NPN sensor wiring to
IMP1 and IMP2 inputs.
Note: Maximal torque to tight main screw is 0.25 Nm.
Outputs
4.1.10 ID-SCM1
Technical data
Power supply: internal supply from ID-DCU MARINE (8 to 36 VDC)
Operating temperature range: -40°C to +70°C
Number of analog outputs: 1, no galvanic separation
