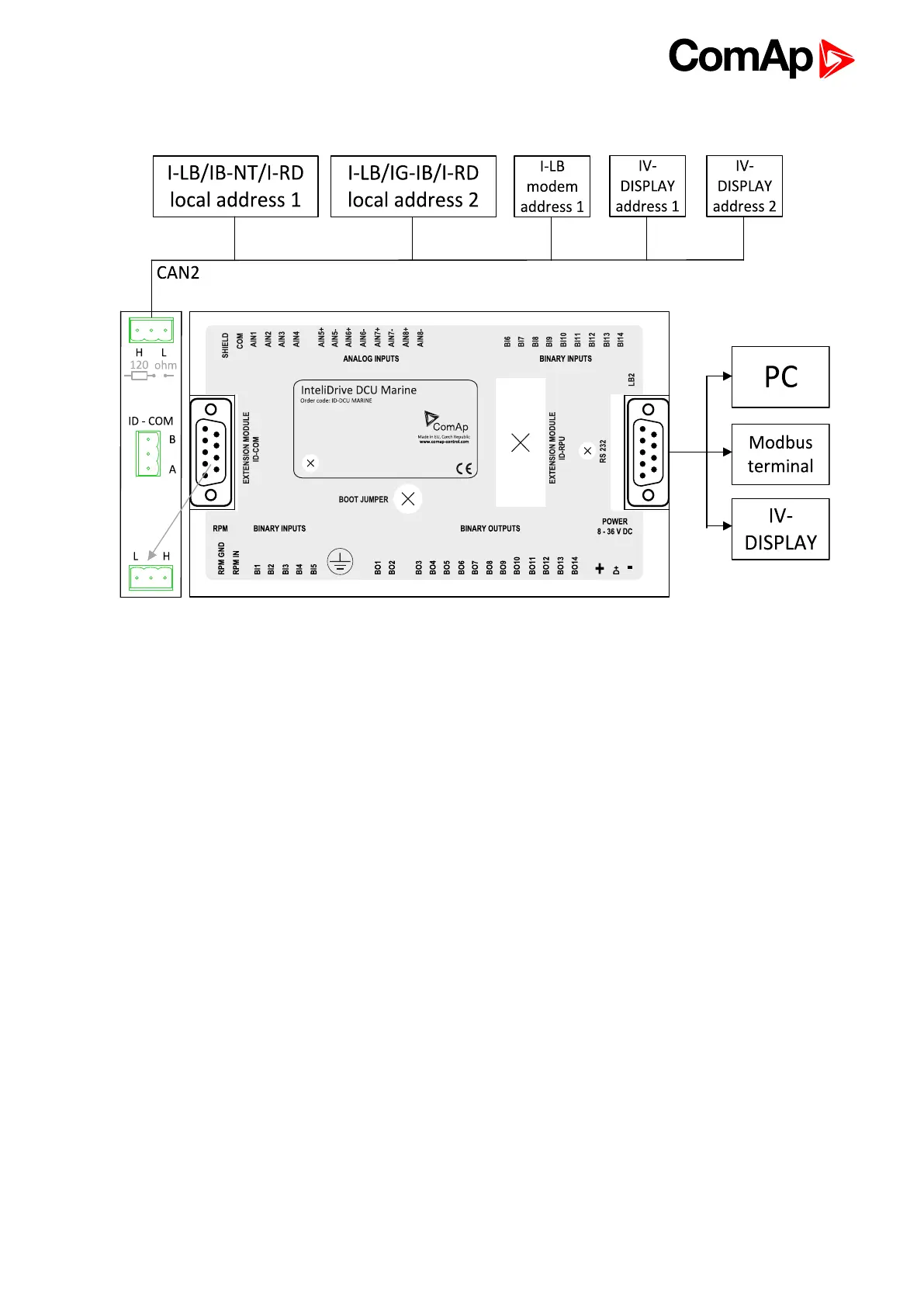

4.1.2 Communication lines wiring
4.1.3 ECU
Electronic Control Unit is kind of extension module connected to CAN1 bus or serial line and communicating via
electronic signal (J1939 or Modbus protocol). Generally can read binary and analog values from engine (inputs)
and transmit binary outputs (e.g. Start, Stop commands) and analog outputs (e.g. Speed request). ECU size
(count of input and output resources) are configurable and depends on controller possibilities.
4.1.4 ID DCU MARINE dimensions
ID-COM and ID-SCM are mounted directly to ID-DCU MARINE case.
