InteliDrive DCU Marine - 3.0.0 Global Guide
62

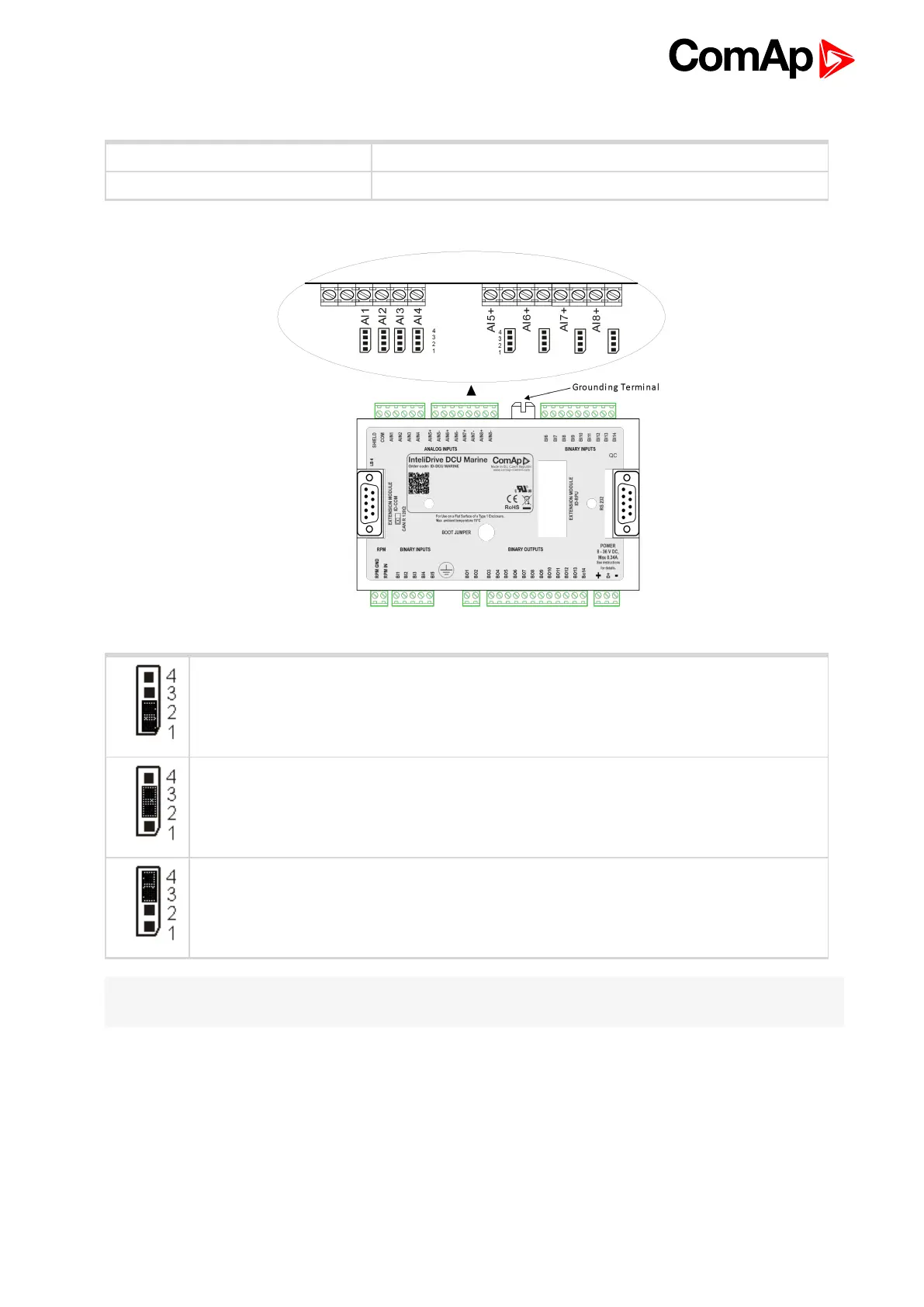

Controller default jumper setting from production
AI1 to AI4 Current sensor
AI5 to AI8 Resistance sensor
Current
Measurement
- Jumper on pins 1-2.
Voltage (thermocouples AI5-AI8) measurement
- Jumper on pins 2-3.
Resistance measurement
- Jumper on pins 3-4.
Note: Maximal voltage on controller Differential analog inputs AI5 to AI8 is in the range –2 to +5 VDC against
minus power supply terminal!
