InteliDrive DCU Marine - 3.0.0 Global Guide
247
Related FW 3.0.0 Related applications All
Comm object 120
Description

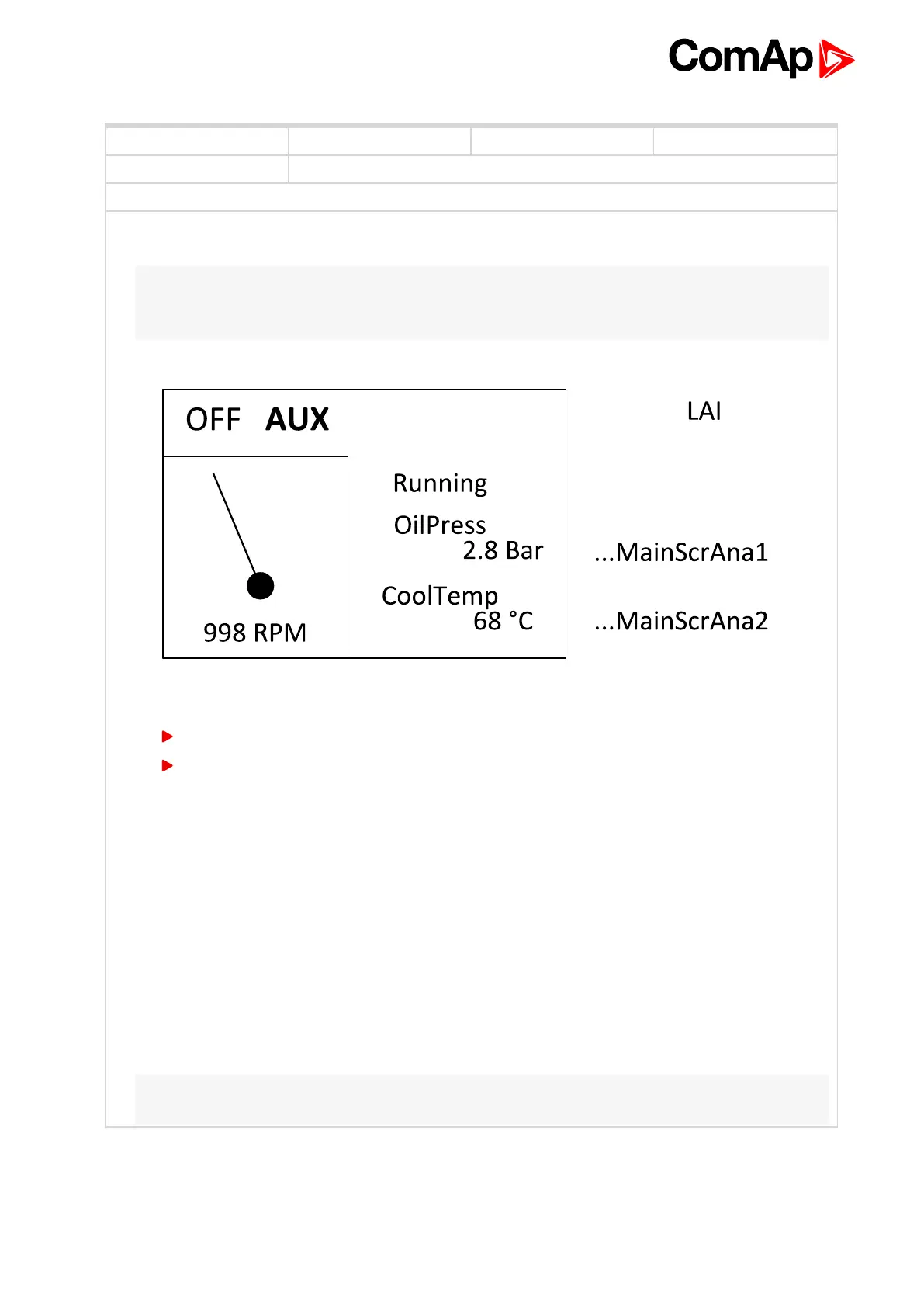

Logical Analog Inputs MainScrAna1 or MainScrAna2 enables to redirect any Analog input value on the ID-
DCU Marine main screen on OilPress” and “CoolTemp position.
Note: Default names OilPress and “CoolTemp do not change when the Logical Analog Inputs
MainScrAna1 or MainScrAna2 are connected to other source values and has to be changed by
translator.
1. Default configuration
ID / AIN_Function = Oil Press; MainScrAna1
ID / AIN2_Function = Coolant Temp; MainScrAna2
2. To display e.g. value from AIN3 AirTemp1” instead “OilPress (the first position) and AIN4
AirTemp2 instead “CoolTemp” value:
a. Select AIN3 Property Function = MainScrAna1
b. Select AIN4 Property Function = MainScrAna2
c. Create new language (in DriveConfig Languages) based on English
d. Rename (in DriveConfig Translator / Other texts) text “OilPress to “AirTemp1 in the newly
created language
e. Rename (in DriveConfig Translator / Other texts) text “CoolTemp” (no space between) to
AirTemp2 in the newly created language
f. Switch the ID-DCU Marine controller into newly created and modificated language (Enter +
Page, Page, select the new language by up/down arrows, Enter)
Note: Translate text “OilPress and “CoolTemp - no space between words because of similar texts (e.g.
Coolant Temp, etc. are located on other screens).
MainScrAna1
6 back to List of LAI
