InteliDrive DCU Marine - 3.0.0 Global Guide
8

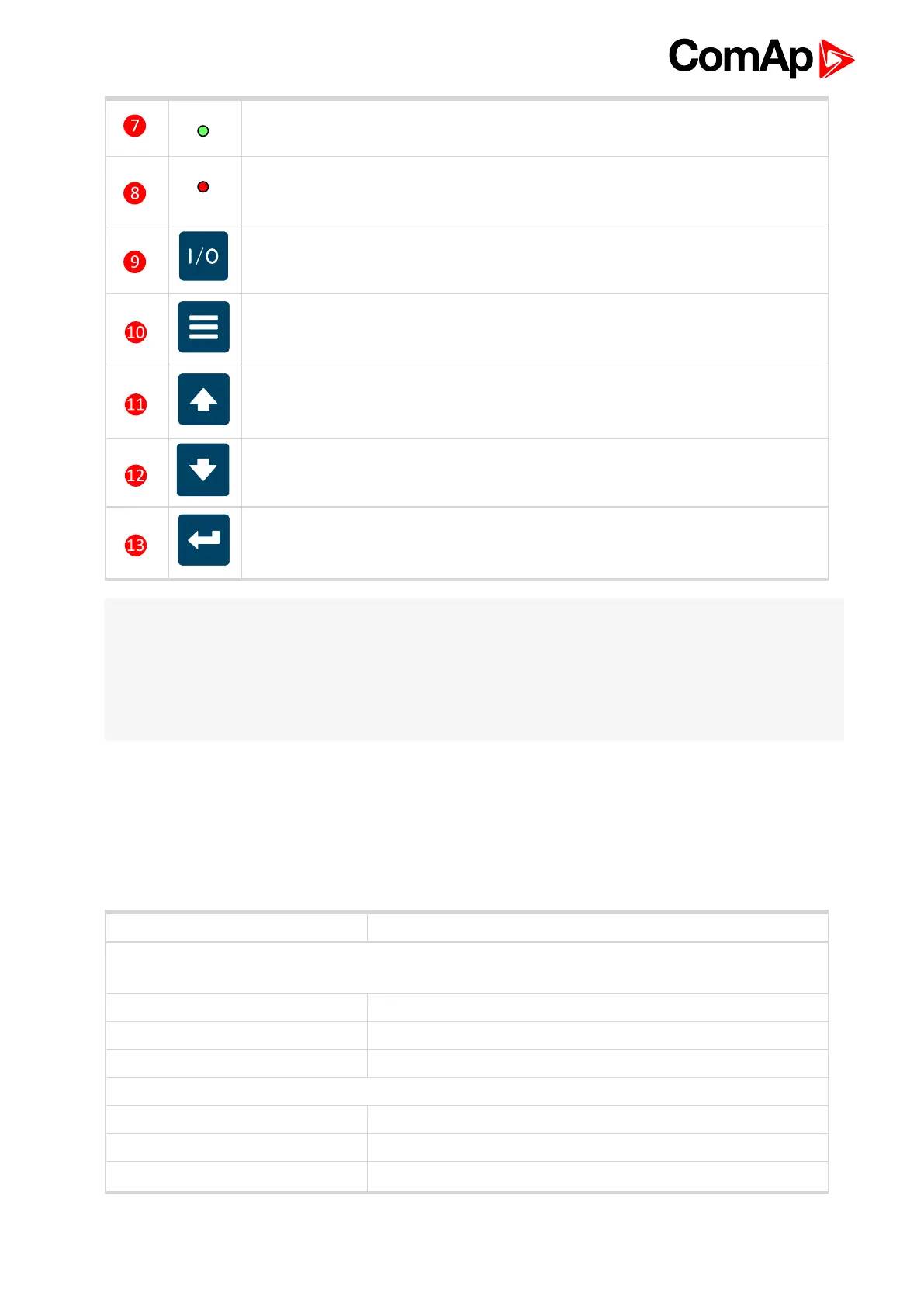

GREEN = Engine running.
RED (blink) = Alarm list contains not confirmed alarm.
RED (lit) = Alarm list contains confirmed alarm.
Button for Close load or Clutch Binary output control.
Cycles through the display screens MEASUREMENT->ADJUSTEMENT-
>HISTORY.
Select the set point, select the screen or increase set point value.
Select the set point, select the screen or decrease set point value.
Confirm set point value.
Note:
Stop button hold time is 1 sec. to avoid unwanted engine stop.
The 2nd (1 sec) push of the Stop button cancels the ‘cooling state’ of the engine and stops the engine
immediately. To avoid the cancel of the ‘cooling state’ by the 2nd push of the Stop button, use LBI card of the
DriveConfig tool and make the association of Access Lock to the Cooling logical binary output of the ‘Source’
column. It causes locking of the front panel buttons during the Cooling state.
2.1.1 Controller screens
There are three screen groups available on ID controller: Measuring – Setpoints – History.
Measuring screen will be divided to more groups – ID-DCU MARINE, BIN/BOUT, AIN.
Measuring (instruments) screens
Screen Content
Hidden, but available by Key combination, see Functions available from ID-DCU MARINE front panel
keys (page 15)
Info screen: Fw and App. version, s.n., .. Language list and switch.
Language screen
Fast edit screen
Available using ↑ or ↓ front panel keys
ECU diagnostics code list
Alarm list
1 = Main screen
ID Mode, RPM1, Engine state, Oil Pressure and Coolant
To Next Page
