InteliDrive DCU Marine - 3.0.0 Global Guide
49

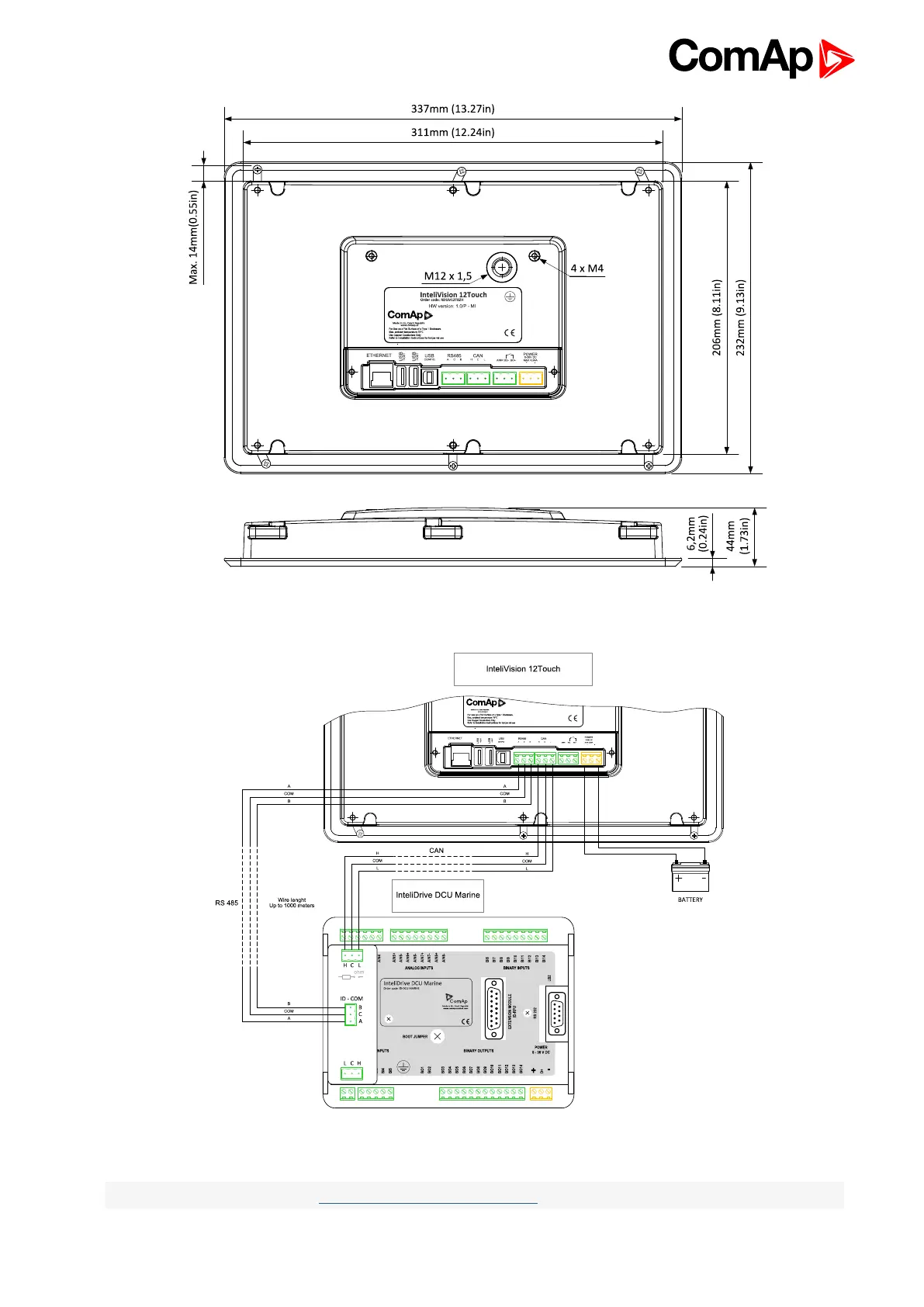

Image 4.2 InteliVision 12Touch - dimensions
Image 4.3 Wiring example: ID-DCU Marine to InteliVision 12Touch
Note: For more information see InteliVision 12Touch Globa guide
