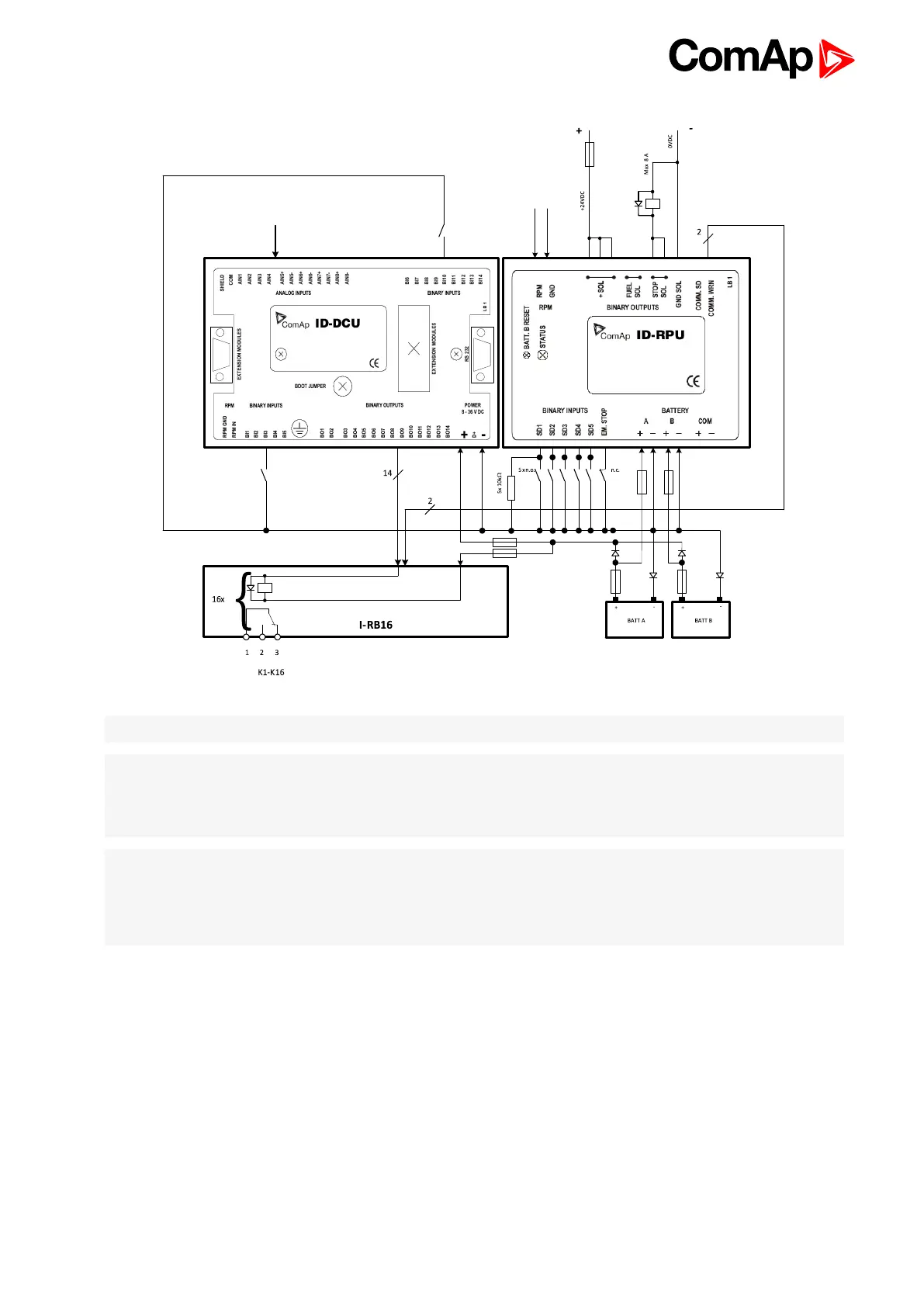

Note: Fuses must be dimensioned in descending order in direction from batteries to devices.
Note: It is required to use two independent actuators for engine stopping
1. Actuator controlled by ID-RPU / STOP SOL output
2. Actuator controlled by ID-DCU / BOx output (configured to Stop Solenoid function)
Note: Emergency stop button contacts type NC (Normally Closed) can be directly incorporated into circuit
controlling ID RPU / EM. STOP input. It is also acceptable to use relay NC contacts in the circuit connected to
ID RPU / EM. STOP input (relay coil is controlled by emergency stop circuit) in case of NO (Normally Opened)
emergency stop circuit type, if it is required by application.
