© 06/2006 8154-001
1/4
TCD 2015
Cylinder head
W 01-04-04
6
Removing and installing cylinder head
Commercial available tools:
– Socket wrench insert . . . . . . . . . . . 8016
– Rotation angle disc . . . . . . . . . . . . . 8190
– W 01-02-02
– W 01-04-09
– W 06-01-05 . . . . . . . . . . . . (A-bank)
– W 06-01-05 . . . . . . . . . . . . (B-bank)
– W 06-07-03 . . . . . . . . . . . . (A-bank)
– W 06-07-03 . . . . . . . . . . . . (B-bank)
– W 07-07-01

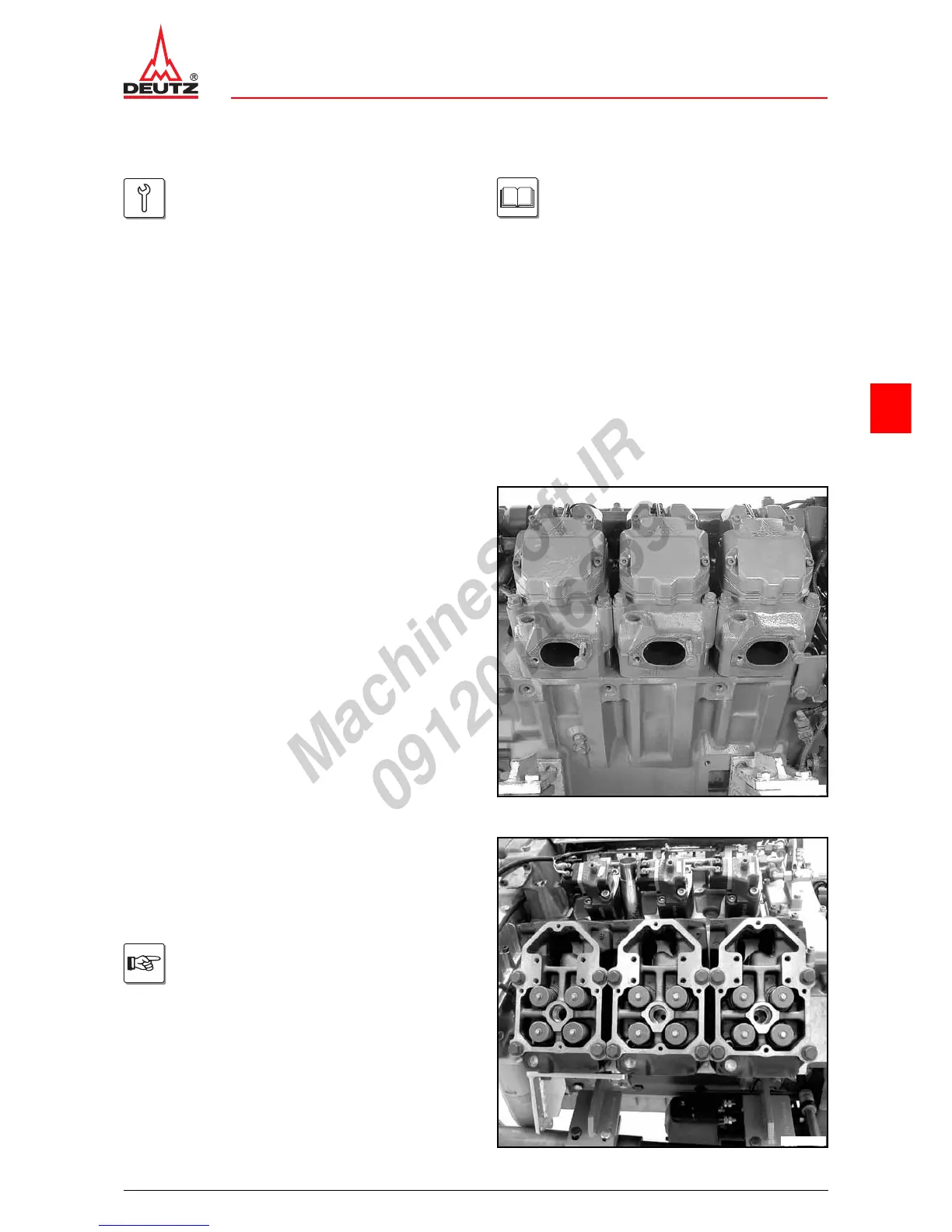

Removing the cylinder head
z Remove charge air pipe (A-bank).
W 06-07-03
z Remove charge air pipe (B-bank).
W 06-07-03
z Remove exhaust line (A-bank)
W 06-01-05
z Remove exhaust pipe (B-bank)
W 06-01-05
© 40578-0
z Remove rocker arm and rocker arm bracket.
W 01-02-02
z Removing fuel injectors.
W 07-07-01
Lay out components in the order in which
they should be installed.
© 42234-1
