TCD 2015
Cylinder head
W 01-07-08
6
Checking the valve lag
Commercial available tools:
– Depth-measuring
appliance
Special tools:
– Support bracket . . . . . . . . . . . . . 120900
– Base plate. . . . . . . . . . . . . . . . . . 120910
– W 01-04-04
Attention!
When the wear limit is reached, the valve
seat insert and/or valve must be renewed.
Checking the valve lag
z Remove cylinder head.
W 01-04-04

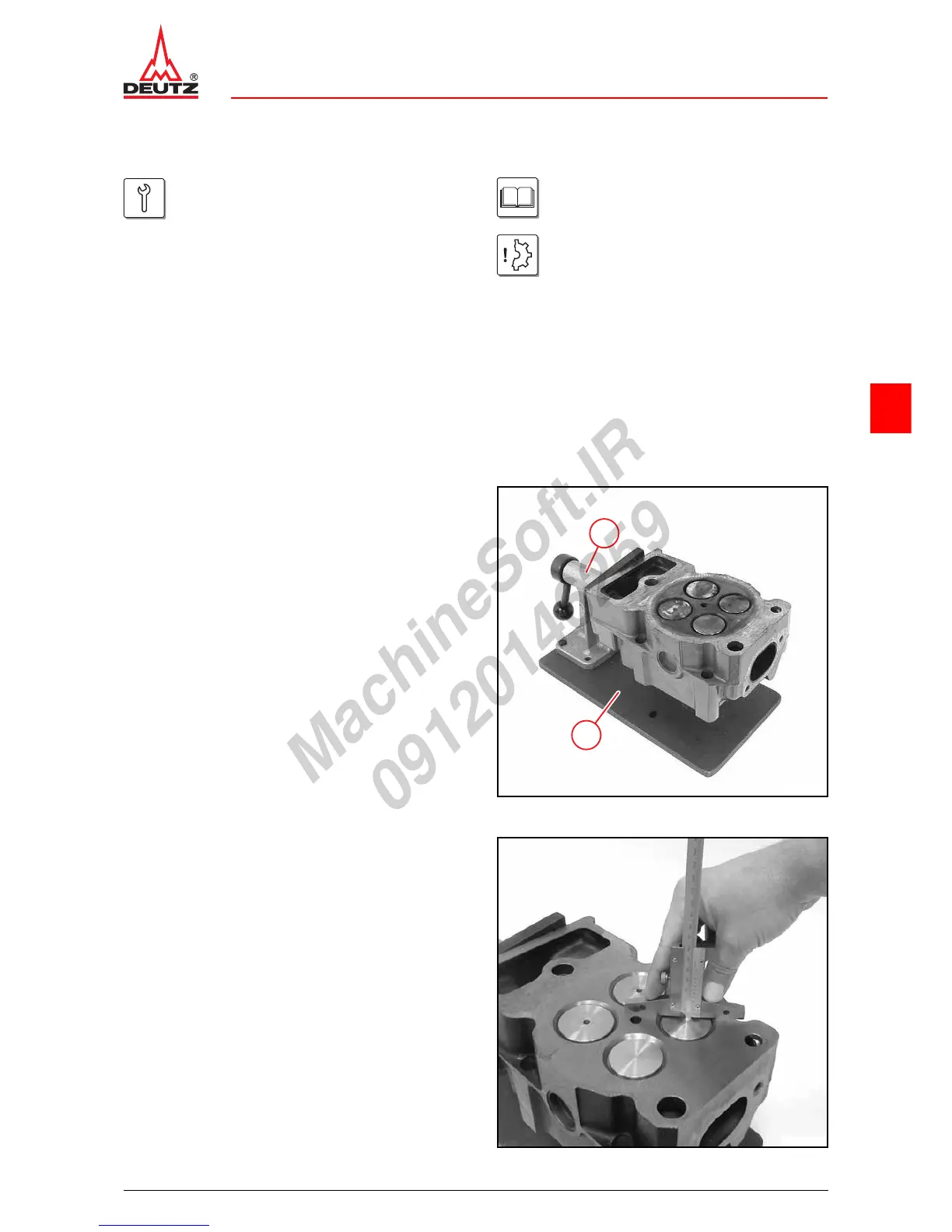

z Mount support bracket (1) on base plate (2).
z Mount cylinder head on support bracket.
2
1
© 40650_1
z Mount depth measuring appliance on cylinder head
sealing surface.
z Measure valve stand back.
P01 45
P01 46
© 42228-1
