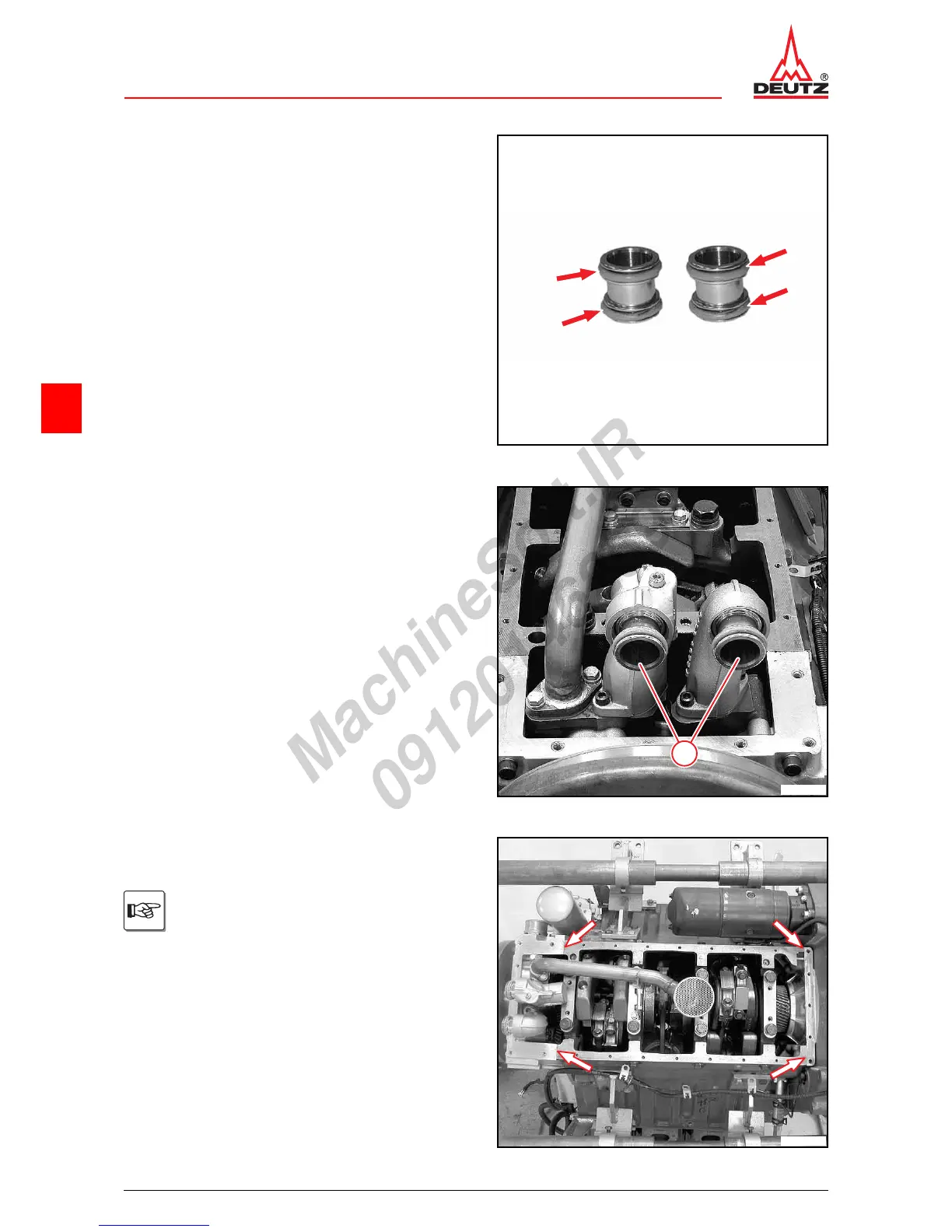

TCD 2015 Railway
Lube oil system
W 08-04-07
© 06/2006 8231-001
4/10
6
z Insert new O-rings (arrows).
z Coat the O-rings with fitting compound.
© 45863-0
z Insert plug elements (1).
1
© 45862-0
Mount lube oil tray with gasket.
z Clean sealing surfaces.
z Apply packing compound to the joints (arrows).
The sealing surfaces must be dry and free
from grease and dirt.
© 42445-1
