© 06/2006 8178-001
7/14
TCD 2015
Crankcase
W 03-08-01
6

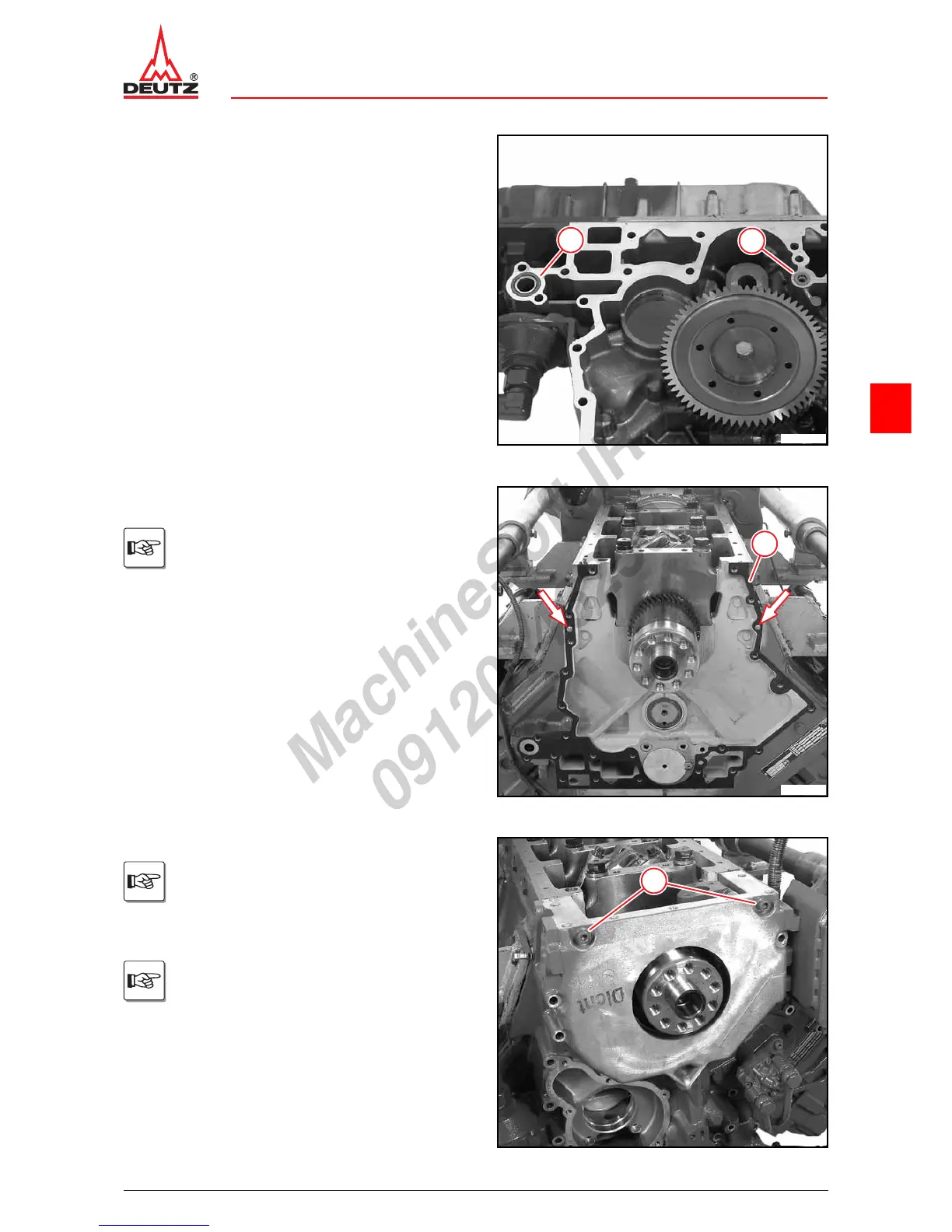

Installing genset support
z Clean sealing surfaces.
z Fix new O-rings (1) with a little grease.
1
1
© 40545-0
z Fix new gasket (1) to the crankcase with a little
grease.
The oil pan sealing surface on the crank-
case must face upwards.
Make sure the parallel pins (arrows) are in
place.
1
© 40546-0
z Install genset support.
z Centre genset support above the parallel pins.
z Fix genset support with screws (1).
Use suitable workshop crane.
The teeth of the oil pump gears and the
idler gear must grip the teeth of the cranks-
haft drive wheel.
Screw length:
M10 x 150 mm
1
© 40547-0
