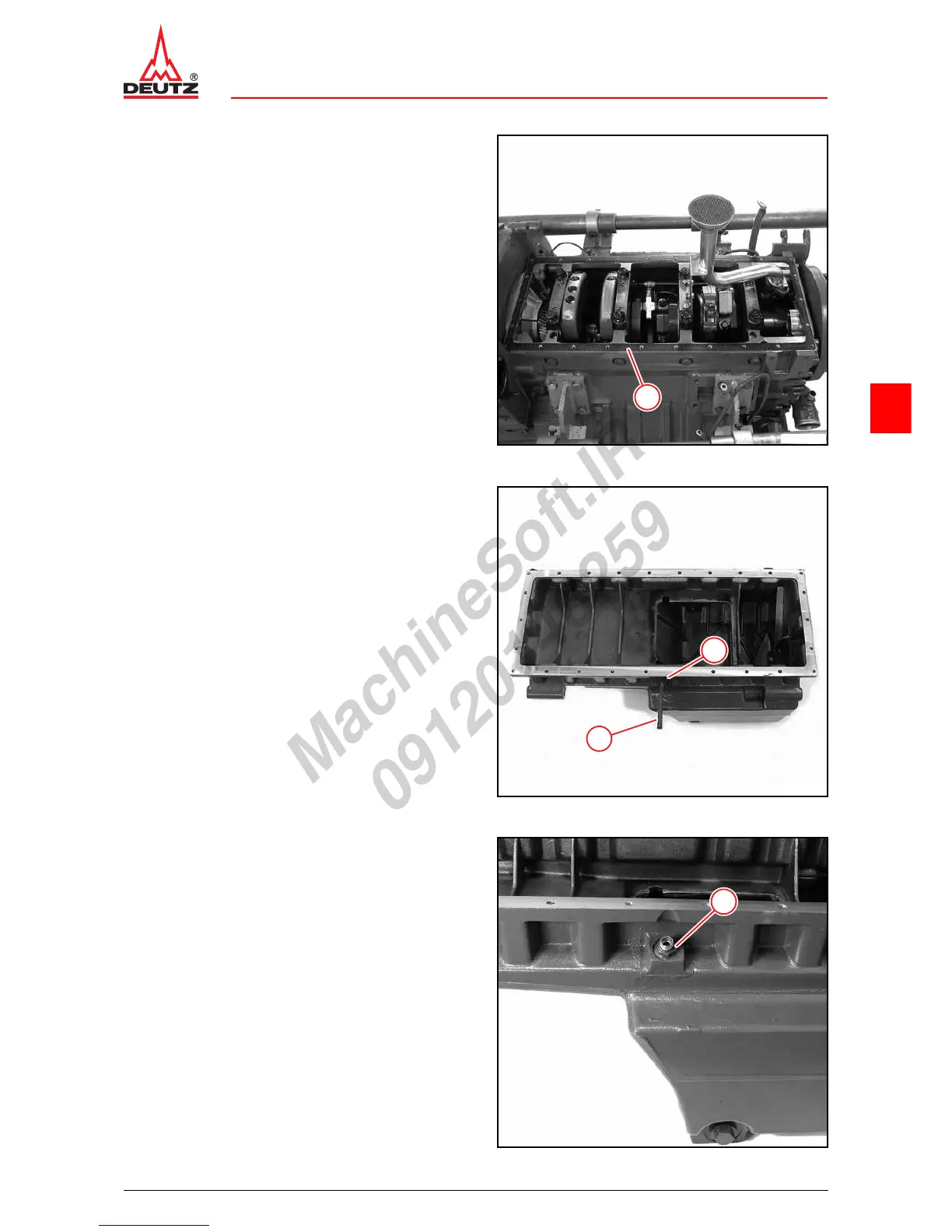

Deutz TCD 2015 - Installing the Lubricating Oil Pan

© 06/2006 8230-001
3/6
TCD 2015
Lube oil system
W 08-04-07
6
z Remove lubricating oil pan.
z Remove gasket (1).
1
© 40840-0
z Unscrew lock nut (1).
z Remove guide tube (2).
z Remove screw-in nipple.
z Visually inspect the components.
1
2
© 40841-0
Installing the lubricating oil pan
z Tighten screw-in nipple (1).
 A08 038
z Mount guide tube.
z Tighten union nut.
 A08 035
1
© 40842-0
