© 06/2006 8175-001
1/4
TCD 2015
Crankcase
W 03-03-01
6
Testing the cylinder liner
Commercial available tools:
– Depth-measuring
appliance
– Micrometer gauge
– Internal measuring device
Special tools:
– Dial gauge. . . . . . . . . . . . . . . . . . 100400
– W 03-03-02
The following work sequence must be car-
ried out on every cylinder unit of a cylinder
bank.

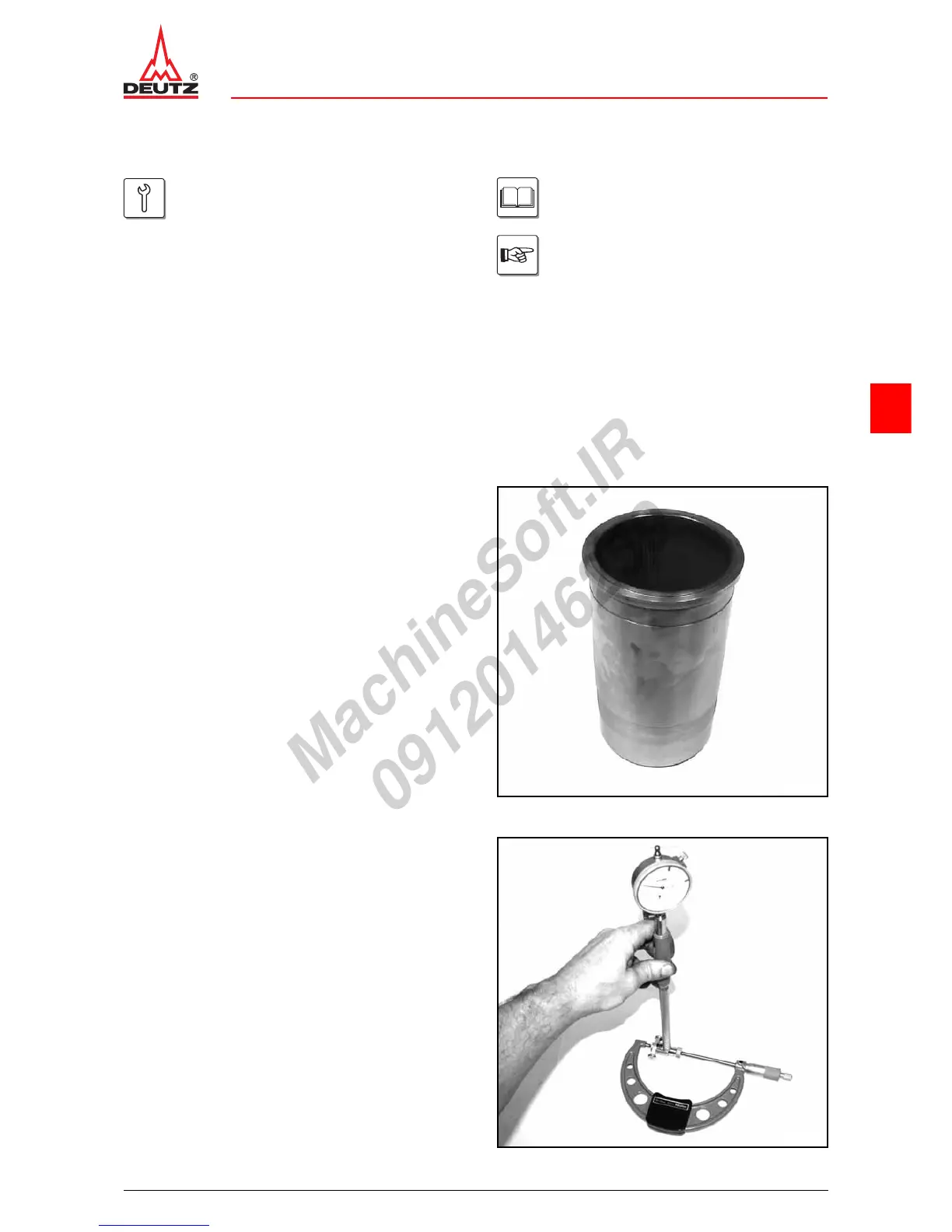

Testing the cylinder liner
z Remove cylinder liner.
W 03-03-02
z Visually inspect the cylinder running surface.
© 45423-0
z Prepare internal measuring device:
– Mount probe bolt for the appropriate measuring
range in the internal measuring device.
– Mount dial gauge with approx. 1 mm pre-tension in
the internal measuring device.
– Set micrometer gauge to 42 mm.
– Balance the internal measuring device between
the test surfaces of the micrometer gauge and set
the meter at the reversal point of the pointer to "0".
© 36094-1
