Deutz TCD 2015 - Removing and Installing the Piston and con Rod

© 06/2006 8170-001
1/8
TCD 2015
Drive system
W 02-09-03
6
Removing and installing the piston and con rod
Commercial available tools:
– Locking ring pliers
– Socket wrench insert . . . . . . . . . . . 8015
– Rotation angle disc . . . . . . . . . . . . . 8190
Special tools:
– Piston ring compressor . . . . . . . . 130650
– W 01-04-04
– W 02-10-03
– W 08-04-06
– W 08-04-06 . . . . . . . . . . . . (Railway)

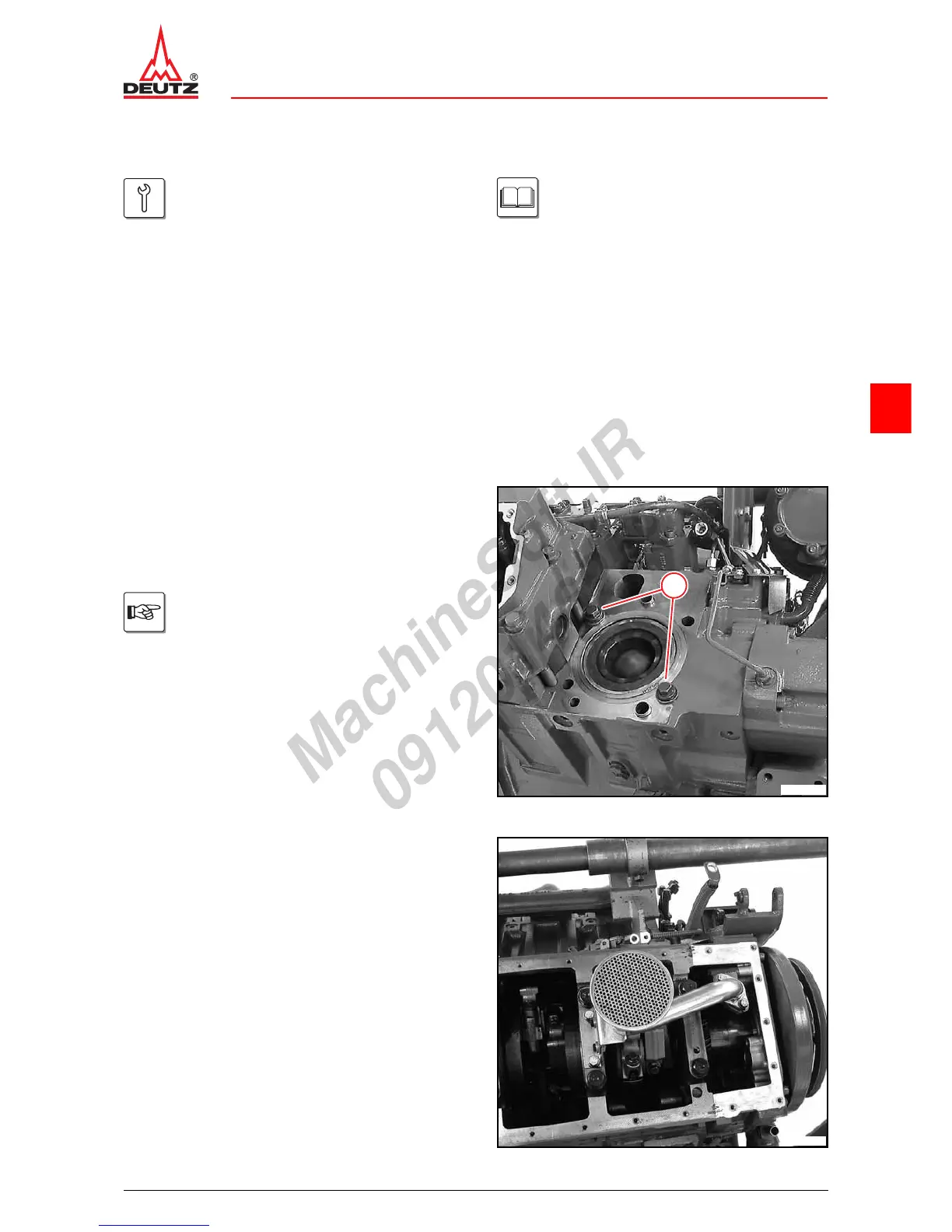

Removing the piston and con rod
z Remove cylinder head.
 W 01-04-04
z Insert screws and washers (1) diagonally opposed.
z Tighten screws until they touch the cylinder liner.
Washers:
Maximum thickness 4 mm
Screw length:
M16 x 90
1
© 40873-0
z Remove oil suction pipe
 W 08-04-06
z Remove oil suction pipe (Railway).
 W 08-04-06
© 40591-0
