TCD 2015
Drive system
W 02-03-01
© 06/2006 8167-001
2/10
6

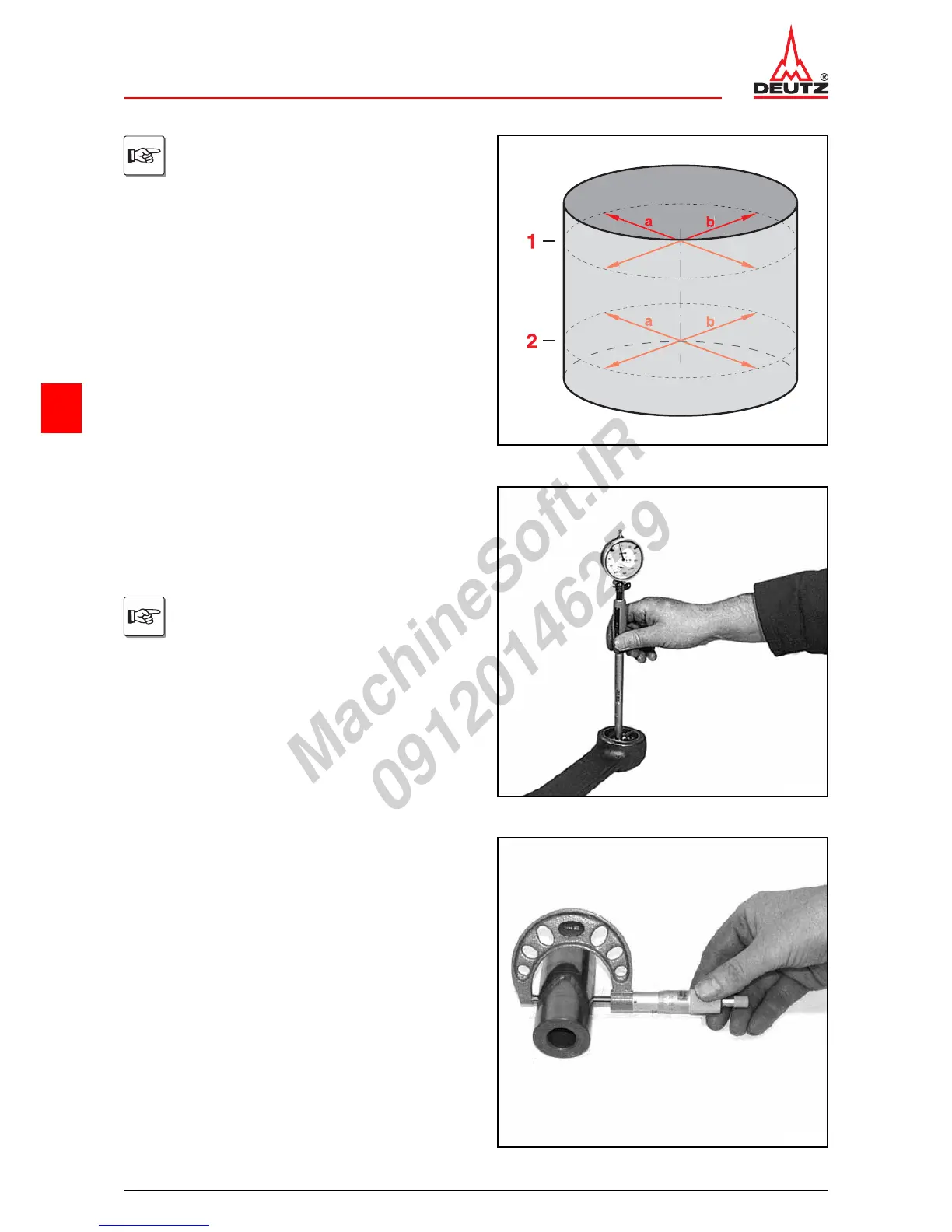

Diagram for measuring the small end bush
at the points "a" and "b" in the
levels "1" and "2".
© 37239-1
z Insert internal measuring device.
z Balance the internal measuring device at the given
measuring points and read off the measured value at
the reversal point of the pointer.
P02 43
z Note measured value, dimension (a).
Measuring points see diagram.
© 34770-2
Checking piston pin
z Measure piston pin with micrometer gauge.
P02 61
z Note measured value, dimension (b).
© 35908-2
