TCD 2015
Crankcase
W 03-11-01
© 06/2006 8183-001
2/8
6

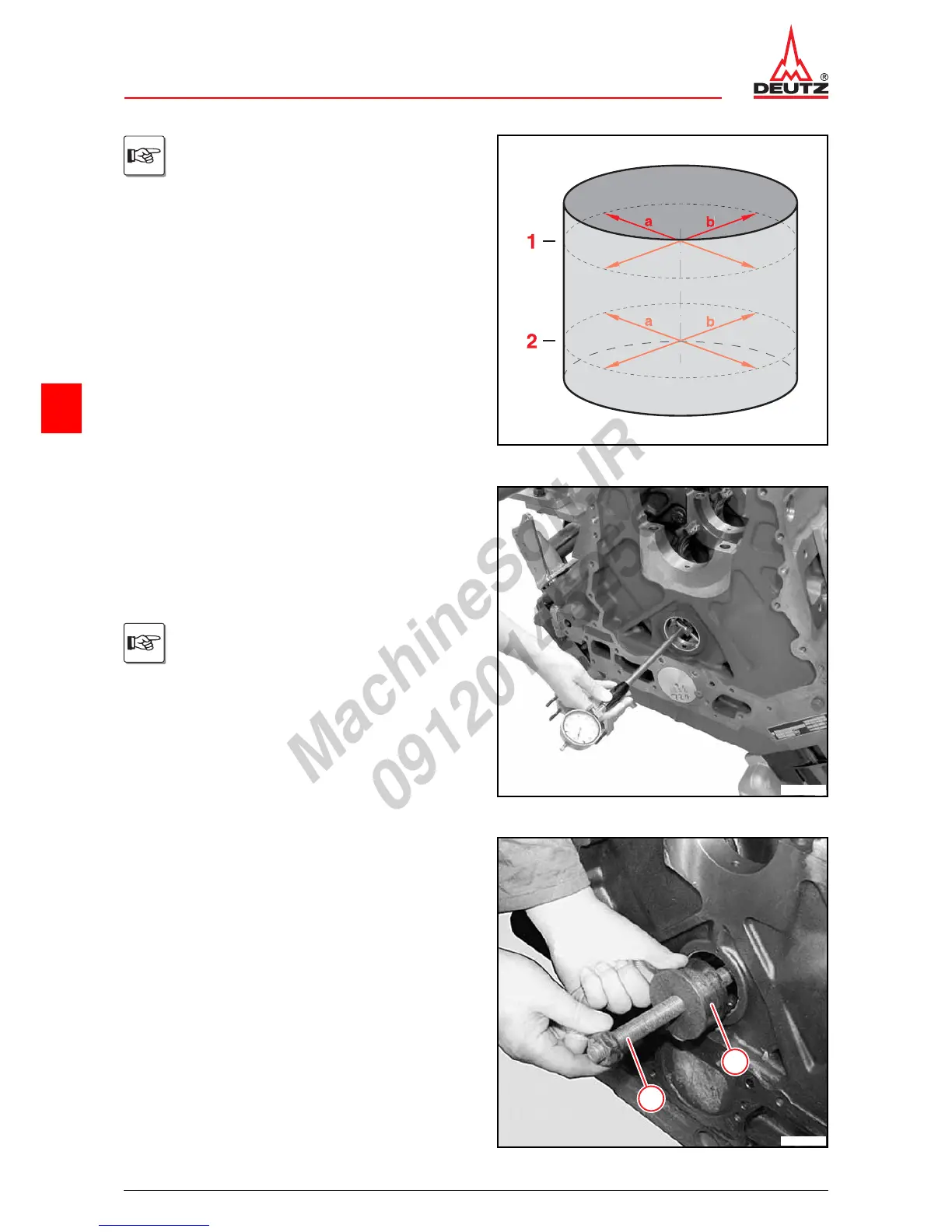

Diagram for measuring the camshaft bea-
ring at the points "a and b" in the
levels "1 and 2".
© 37239-1
z Insert internal measuring device.
z Balance the internal measuring device at the given
measuring points and read off the measured value at
the reversal point of the pointer.
P03 13
P03 14
Measuring points see diagram.
When the wear limit is reached, the cams-
haft bearing must be replaced.
© 42127-1
Removing camshaft bearing
z Insert spindle (1) with puller bush (2) on the opposite
side to the flywheel.
1
2
© 34711-2
