TCD 2015
Engine control
W 04-05-07
© 06/2006 8189-001
14/32
6
z Lightly oil screw (1).
z Tighten screw (1).
A04 005
1
© 40993-0

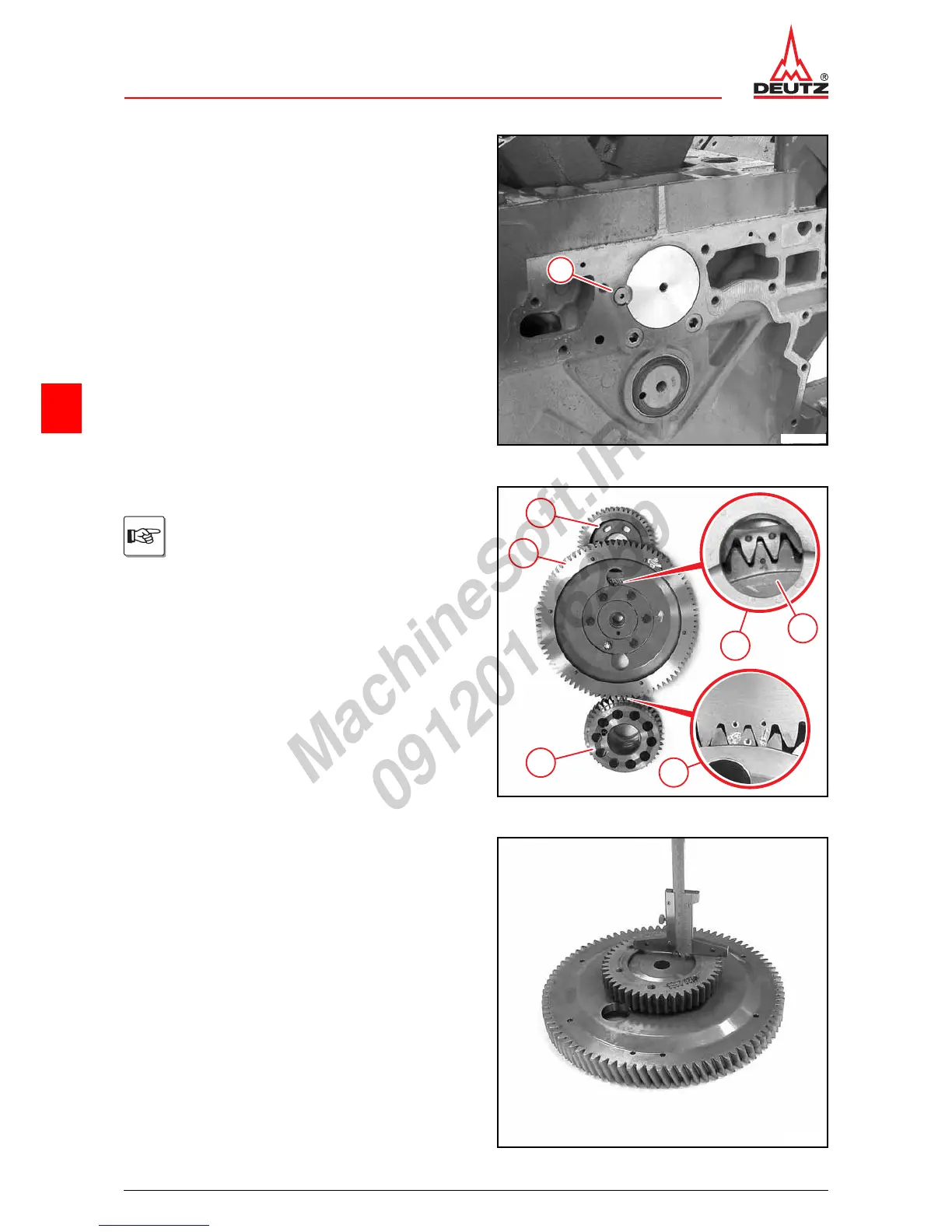

Installing camshaft gear wheel
Overview of the gear train and the mar-
kings of the control times:
Injection pump camshaft gear wheel (1)
Camshaft gear wheel (2)
Idler gear (3).
Crankshaft gear wheel (4)
Marking injection pump camshaft / idler
gear (5)
Marking camshaft / crankshaft (6)
4
5
6
3
1
2
© 40445-1
z Measure the overhang of the parallel pin with the
depth measuring appliance.
P04 39
z Correct overhang.
© 40431-0
