© 06/2006 8195-001
1/2
TCD 2015
Exhaust system/Charging
W 06-01-06
6

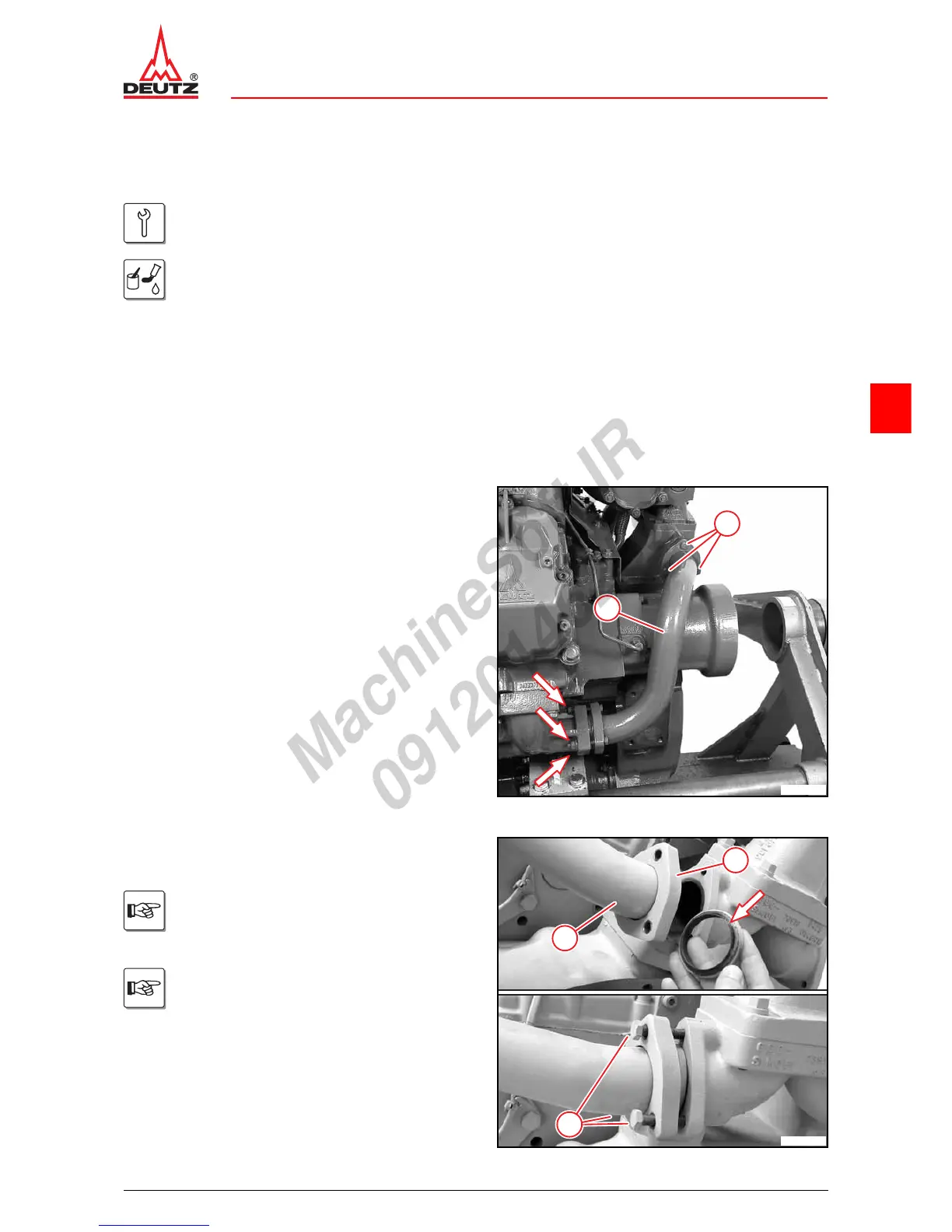

Removing and installing exhaust pipe
(A-bank)
Commercial available tools
– Fitting compound
DEUTZ S1
Removing exhaust pipe
z Unscrew nuts (arrows).
z Remove screws.
z Unscrew screws (1).
z Remove sealing rings.
z Remove exhaust pipe (2).
1
2
© 40733-0
Install exhaust pipe.
z Position exhaust pipe (1).
z Insert sealing ring.
z Mount flange (2) on exhaust manifold.
z Coat the screws with fitting compound .
z Fasten screws (3).
Note installation position.
Note installation position.
The cone (arrow) faces the exhaust pipe.
3
1
2
© 36795-1
