Deutz TCD 2015 - Removing and Installing the Rocker Arm and Rocker Arm Bracket; Removing the Rocker Arm and Rocker Arm Bracket

© 06/2006 8151-001
1/6
TCD 2015
Cylinder head
W 01-02-02
6
Removing and installing the rocker arm and rocker arm bracket
Commercial available tools:
– Feeler gauges
– Locking agent
DEUTZ DW 59
– W 01-01-01
– W 04-06-03
– W 07-03-01 . . . . . . . . . . . . (A-bank)
– W 07-03-01 . . . . . . . . . . . . (B-bank)

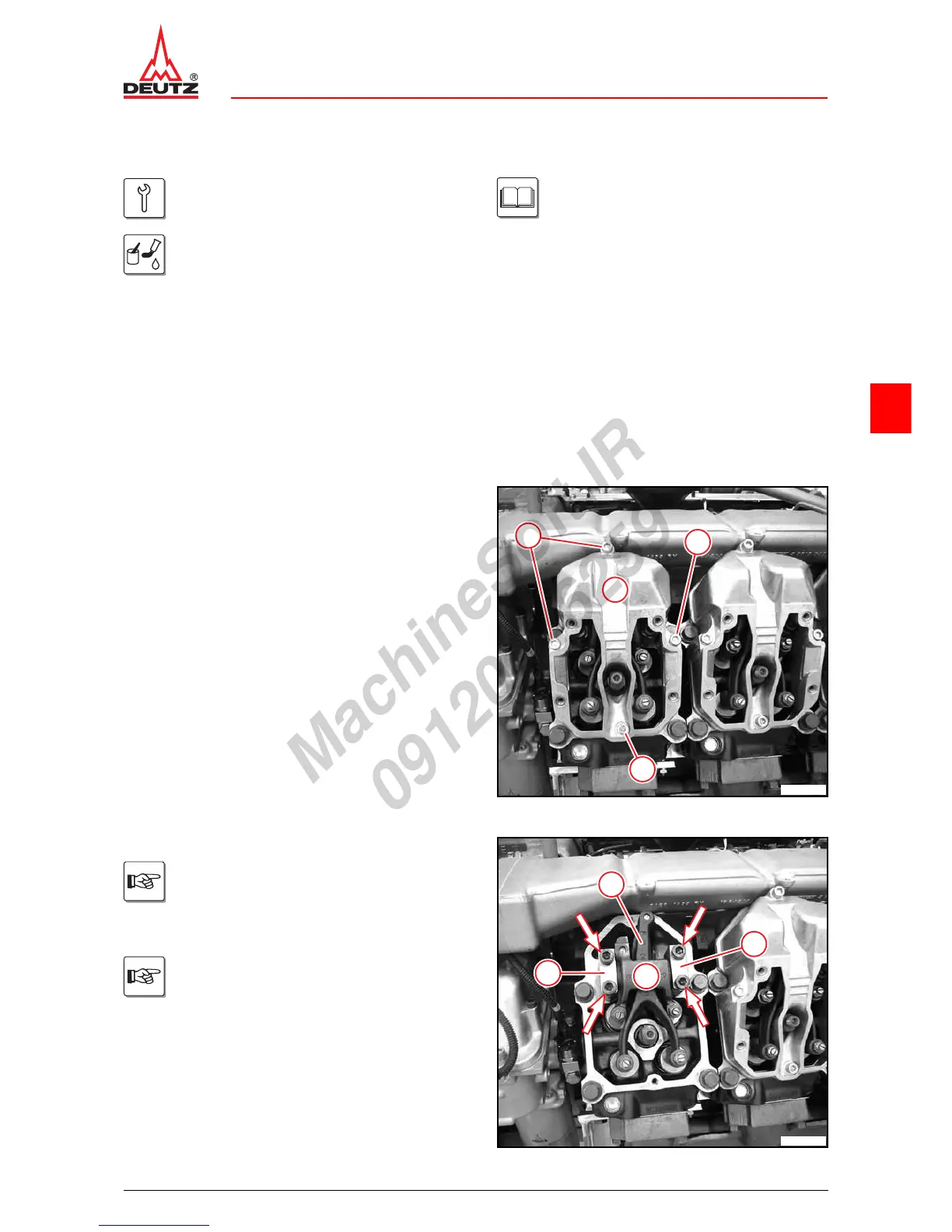

Removing the rocker arm and rocker arm
bracket
z Removing high pressure pipes (A-bank).
 W 07-03-01
z Removing high pressure pipes (B-bank).
 W 07-03-01
z Unscrew screws (1).
z Remove cylinder head cowling (2).
z Remove gasket.
1
2
1
1
© 42215-1
z Unscrew screws (arrows).
z Remove rocker arms (1), (2) and rocker arm
brackets (3) together.
Loosen screws evenly to avoid tension on
the rocker arm brackets.
Lay out components in the order in which
they should be installed.
2
3
3
1
© 42217-1
