Deutz TCD 2015 - Removing and Installing the Cylinder Liner

© 06/2006 8176-001
1/6
TCD 2015
Crankcase
W 03-03-02
6
Removing and installing the cylinder liner
Commercial available tools:
– Depth-measuring
appliance
Special tools:
– Assembly device. . . . . . . . . . . . . 150120
– Extraction tool . . . . . . . . . . . . . . . 150130
– Fitting compound
DEUTZ AP1908
– W 02-09-03
– W 03-03-01
– W 03-03-08

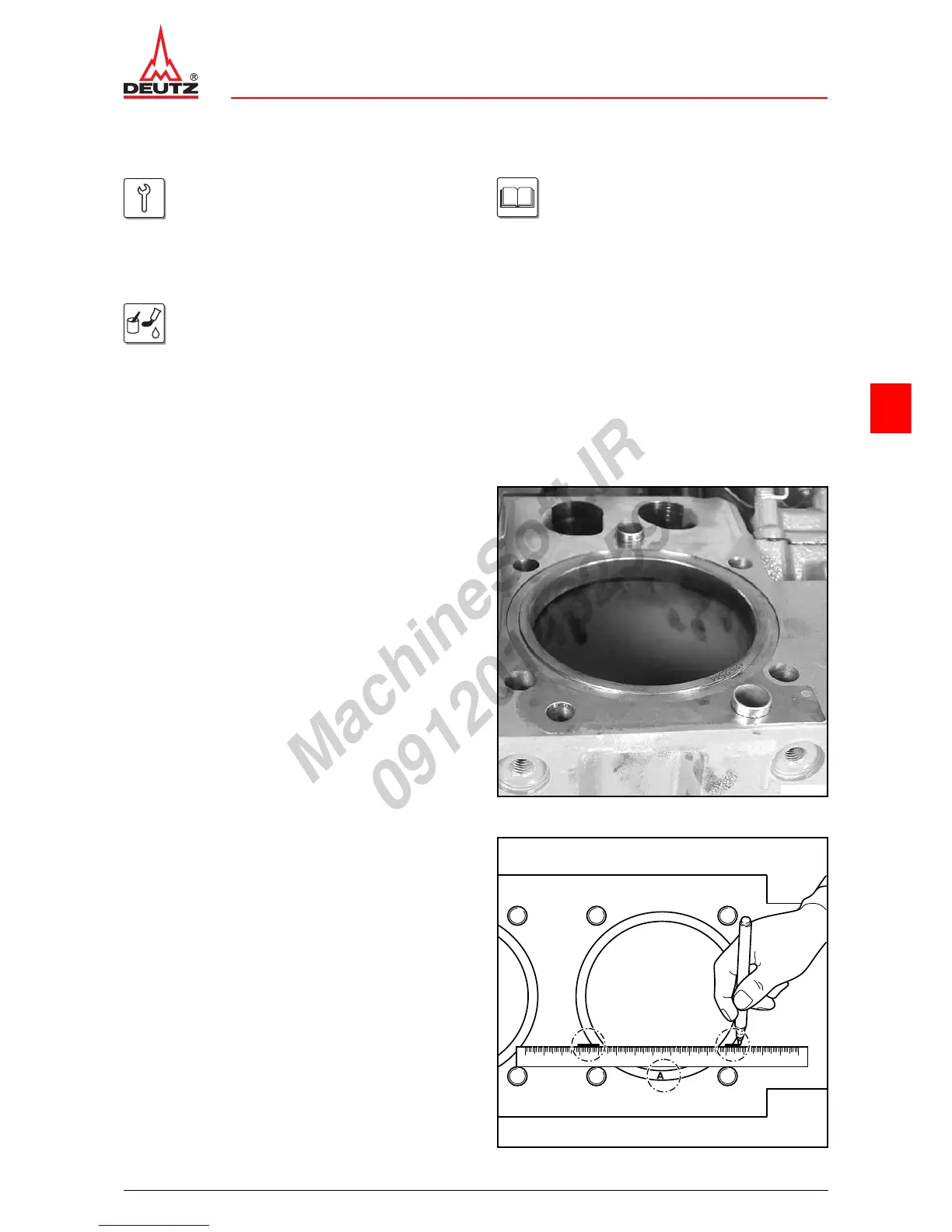

Removing the cylinder liner
z Remove piston and connecting rod.
 W 02-09-03
© 40826-0
z Mark installation position of the cylinder liner on the
crankcase.
z Mark cylinder liner with the cylinder designation.
1
© 51521-1
