TCD 2015
Engine control
W 04-05-06
© 06/2006 8188-001
2/4
6

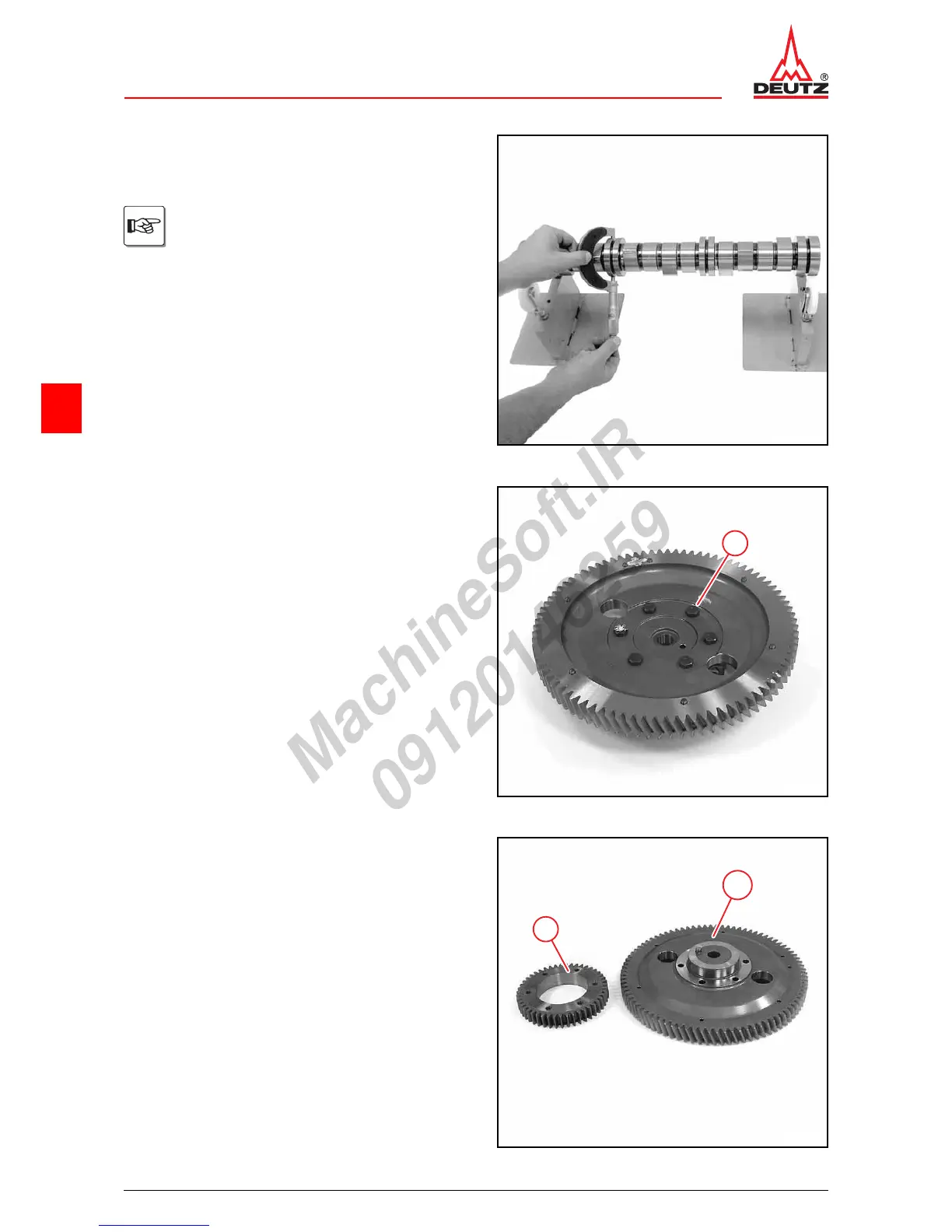

z Measure the diameter of journals with the microme-
ter gauge.
P04 31
Measuring points see diagram.
When the wear limit is reached, the cams-
haft must be renewed.
© 42128-1
Checking the camshaft gear wheel
z Unscrew all screws (1).
1
© 40601-0
z Remove idler gear (1).
z Visually inspect the idler gear (1) for wear.
z Visually inspect the camshaft gear wheel (2) for
wear.
2
1
© 40602-1
