© 06/2006 8205-001
1/6
TCD 2015 Railway
Exhaust system/Charging
W 06-06-04
6
Removing and installing turbocharger
(B-bank)
Commercial available tools
– Fitting compound
DEUTZ S1
Collect leaking operating substances in
suitable vessels and dispose of according
to regulations.

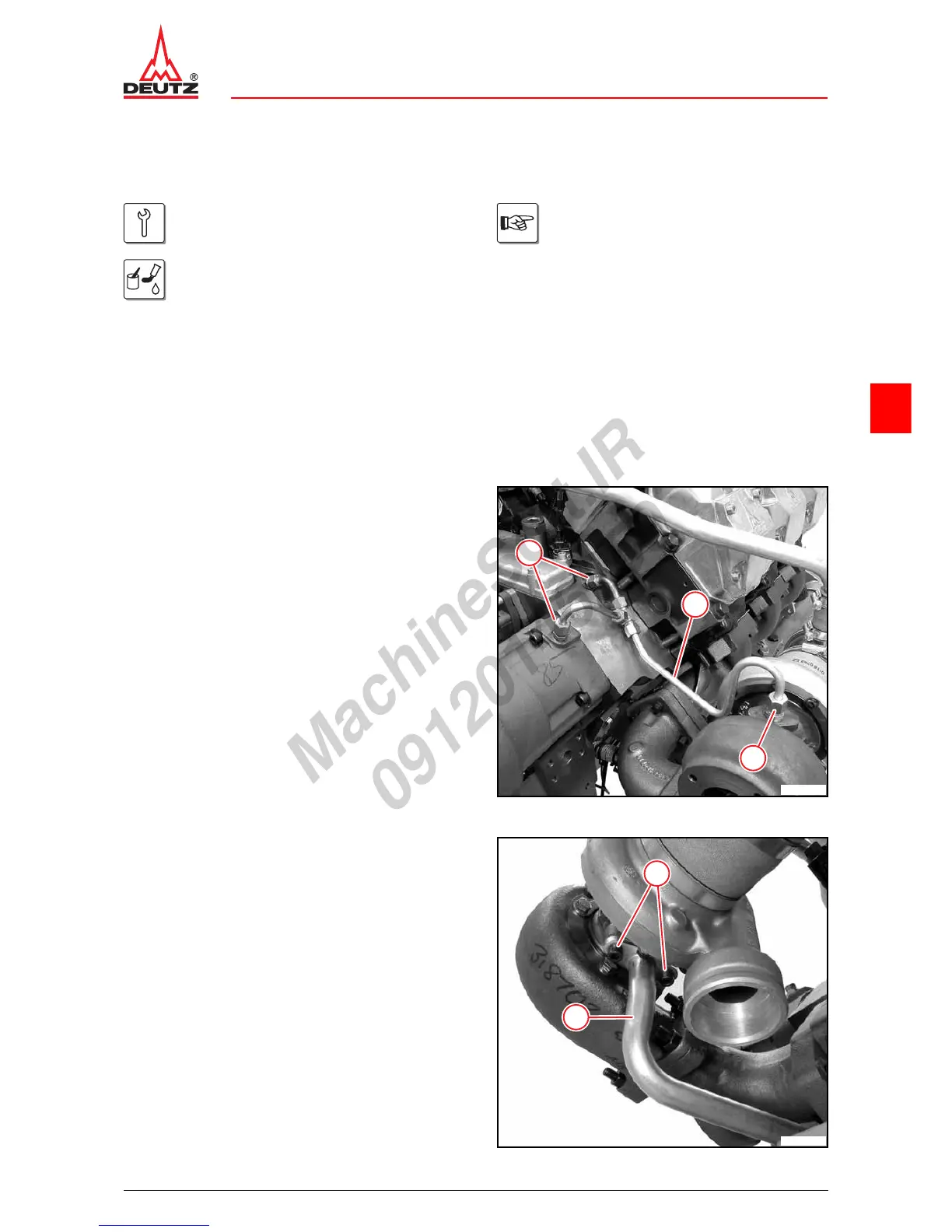

Removing turbocharger
z Unscrew union nuts (1).
z Remove lubricating oil pipe (2).
1
2
1
© 42056-1
z Unscrew screws (1).
z Remove oil return pipe (2).
z Remove gasket.
1
2
© 42057-1
