© 06/2006 8189-001
27/32
TCD 2015
Engine control
W 04-05-07
6

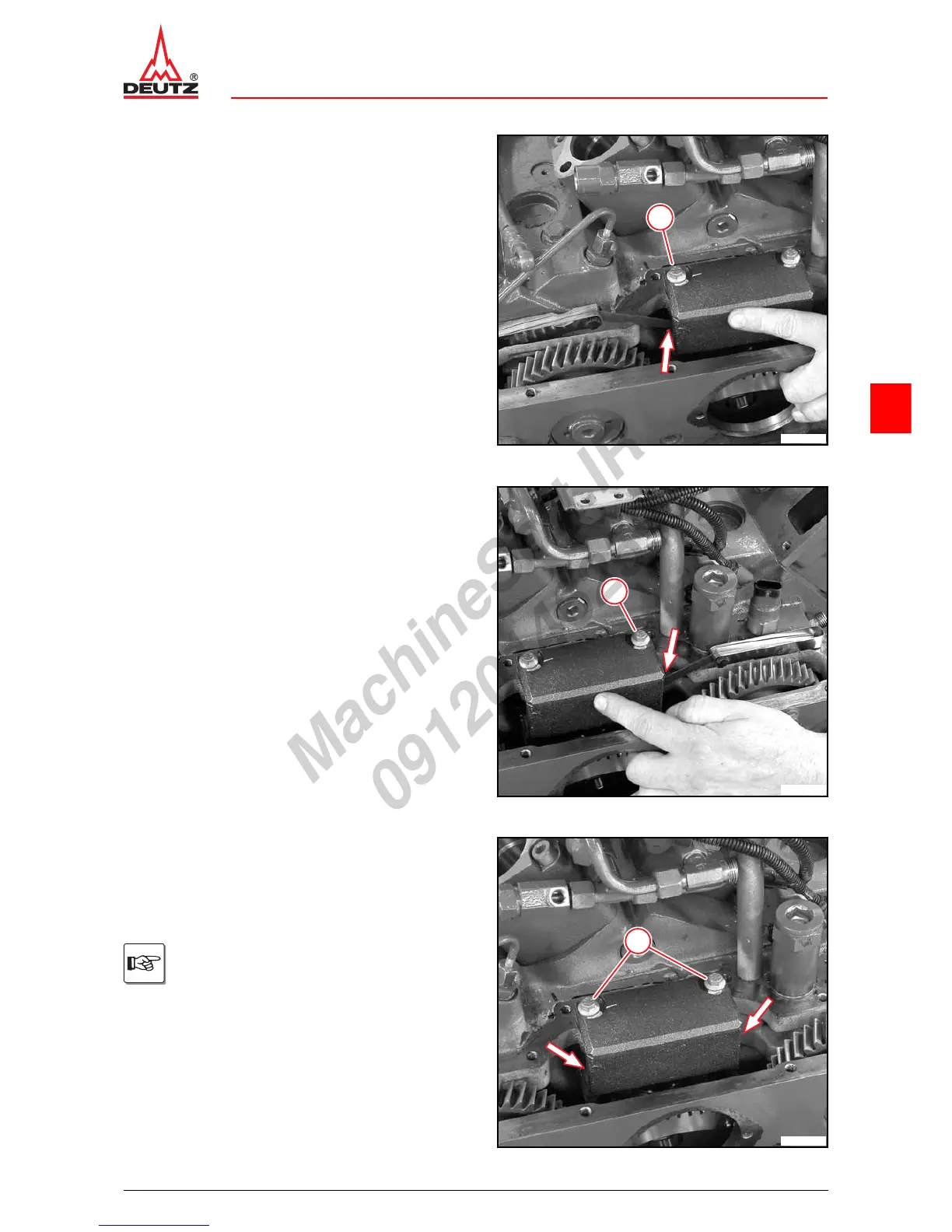

Checking and setting axial backlash of the
injection pump camshaft
z Insert feeler gauge blade between gear wheel of the
injection pump camshaft and the pad thrust
bearing (arrow).
z Press the pad thrust bearing onto the feeler gauge
blade.
z Fasten screw (1).
z Check axial backlash.
P04 43
1
© 40512-0
z Insert feeler gauge blade between gear wheel of the
injection pump camshaft and the pad thrust
bearing (arrow).
z Press the pad thrust bearing onto the feeler gauge
blade.
z Fasten screw (1).
z Check axial backlash.
P04 43
1
© 40513-0
z Tighten screws (1).
A04 015
z Check axial backlash again.
P04 43
Check axial backlash on both sides bet-
ween
pad thrust bearing and gear
wheel (arrows).
1
© 40514-0
