© 06/2006 8149-001
3/6
TCD 2015
General
W 00-05-01
6

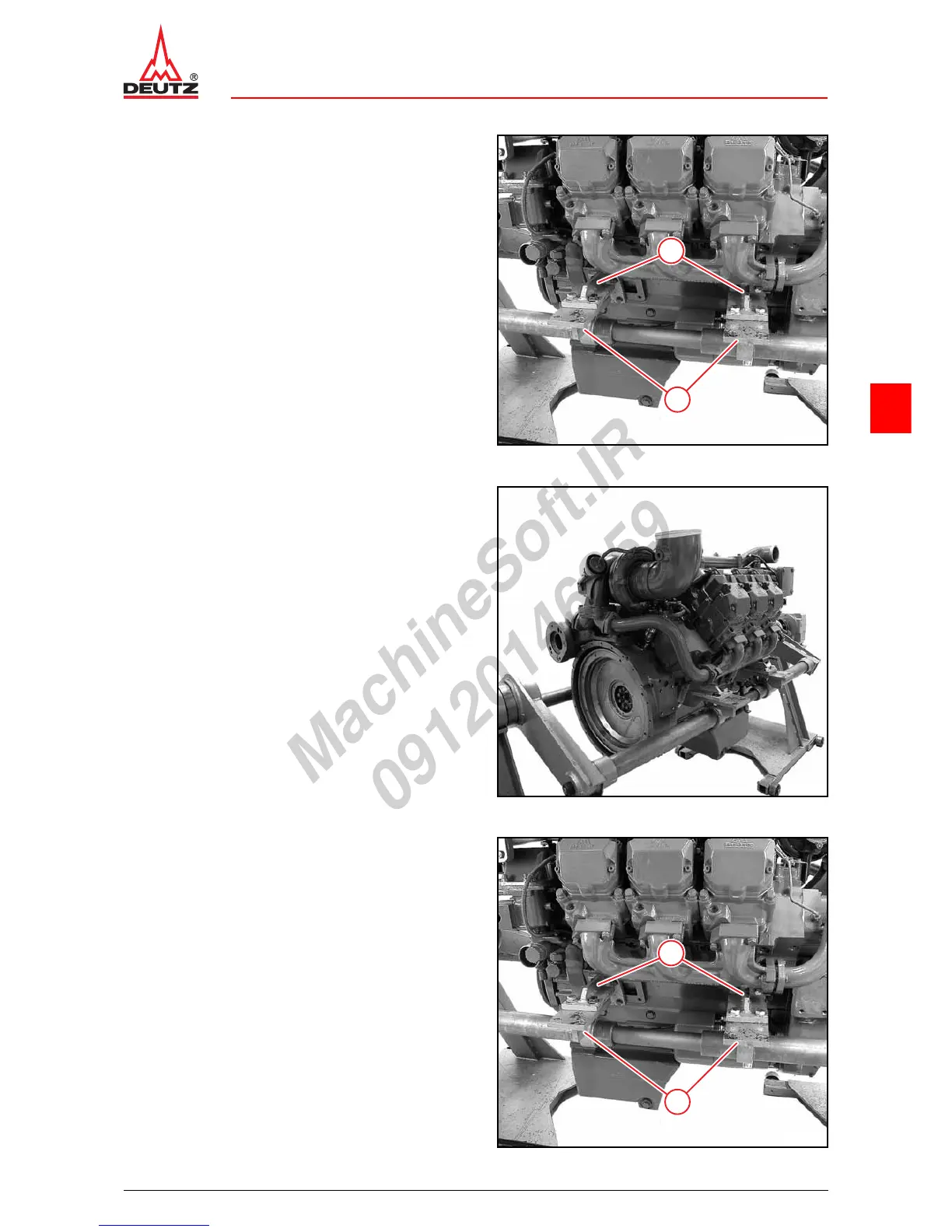

z Insert engine in engine block.
z Mount clamping bracket on the adapter plates.
z Align all clamping brackets (1) on the adapter
plates (2) of the assembly block.
z Tighten screws .
A00 002
1
2
© 40649-0
z Align engine on engine block.
z Unhook the engine from the workshop crane.
© 40653-0
Demounting engine from assembly block
z Hang engine on workshop crane.
z Remove screws.
z Remove all clamping brackets (1) from the adapter
plates (2).
z Lift engine off the assembly block.
1
2
© 40649-0
