TCD 2015
Cylinder head
W 01-02-02
© 06/2006 8151-001
4/6
6

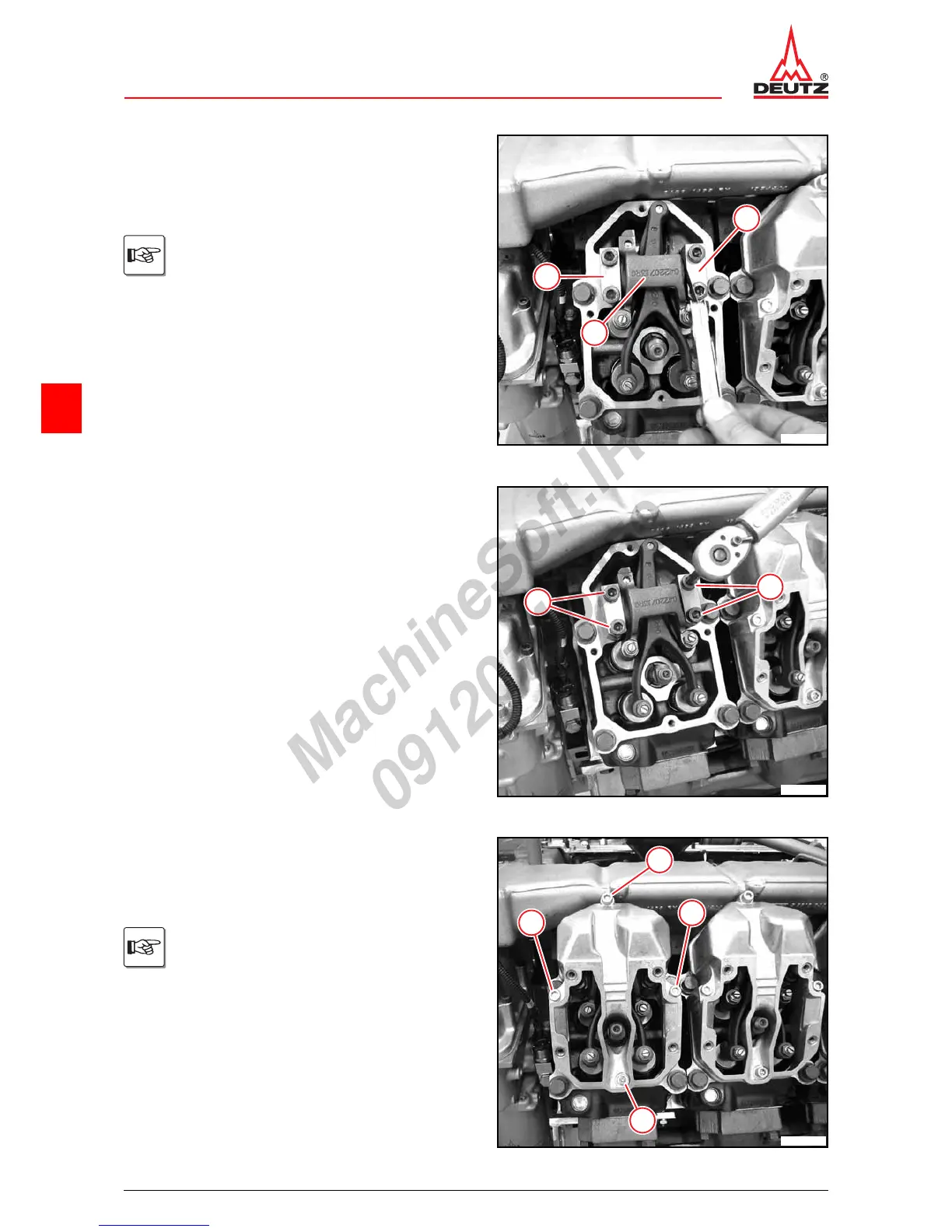

Checking axial backlash of the rocker arm
z Measure the axial backlash between the rocker arm
bracket (1) and rocker arm (2) with a feeler gauge.
P01 75
The rocker arm (2) is on the opposite side
on the rocker arm bracket (3).
The setting is made by moving the rocker
arm brackets.
2
3
1
© 42221-1
z Tighten screws (1) alternately.
A01 002
z Check and set valve clearance.
W 01-01-01
1
1
© 42222-1
z Clean sealing surfaces.
z Mount new gasket.
z Mount cylinder head cover.
z Fasten screws.
Screw length:
M8 x 80 mm (1)
M8 x 70 mm (2)
M8 x 30 mm (3)
2
3
2
1
© 42216-1
