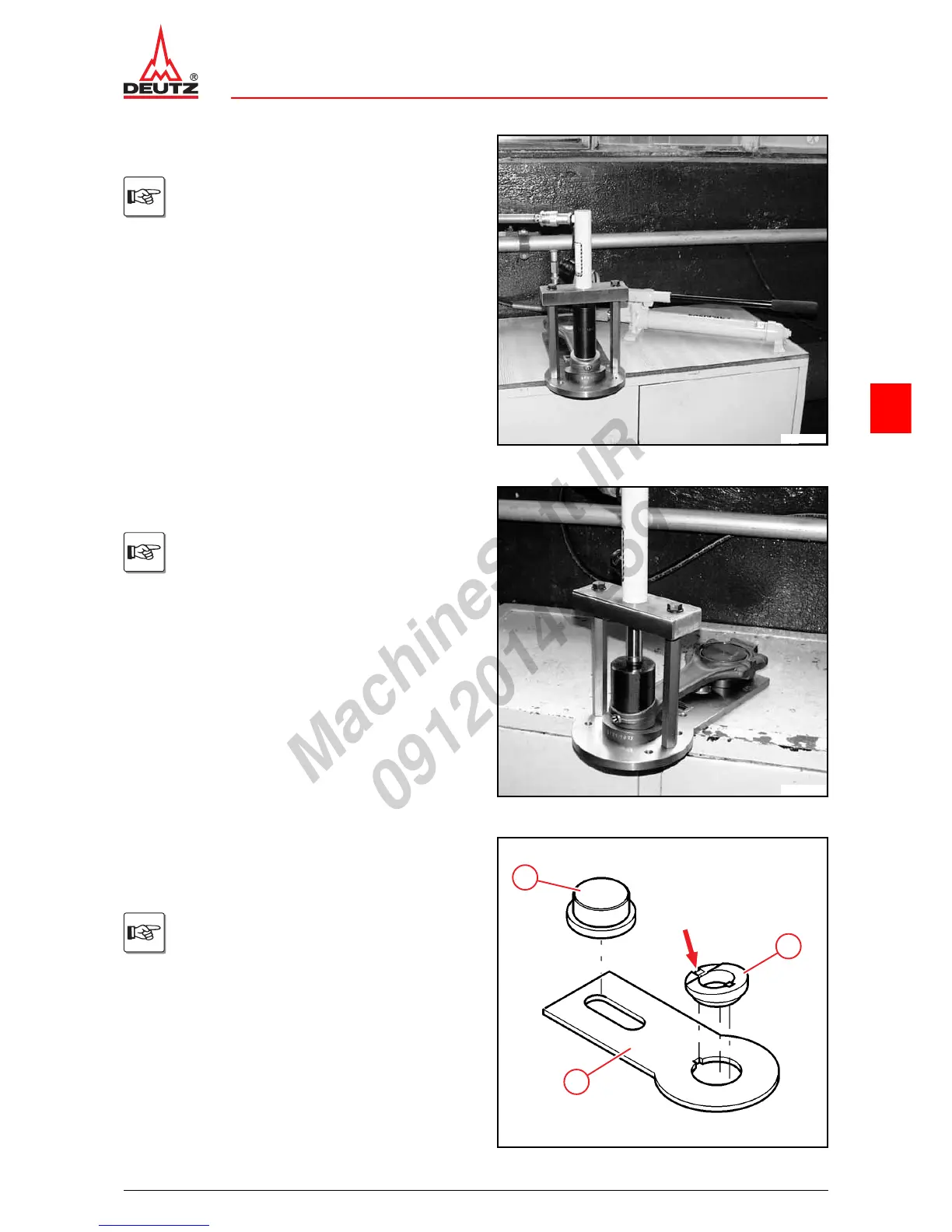

z Align the pneumatic press horizontally on the base
plate.
The press-out die is in the centre above
the top of the assembly tool.
© 36284-2
z Press out the small end bush with slight pressure.
z Clean the bush bore.
The bush bore must be free from grease
and dirt.
© 36285-2
Installing small end bush
z Insert big end bearing holder (3) in base plate (2).
z Insert installation gauge (1) in base plate.
The groove (arrow) must face the big end
bearing holder.
Make sure the installation gauge is inser-
ted flush.
2
3
1
© 40405-0
