© 06/2006 8219-001
3/6
TCD 2015
Fuel system
W 07-07-01
6

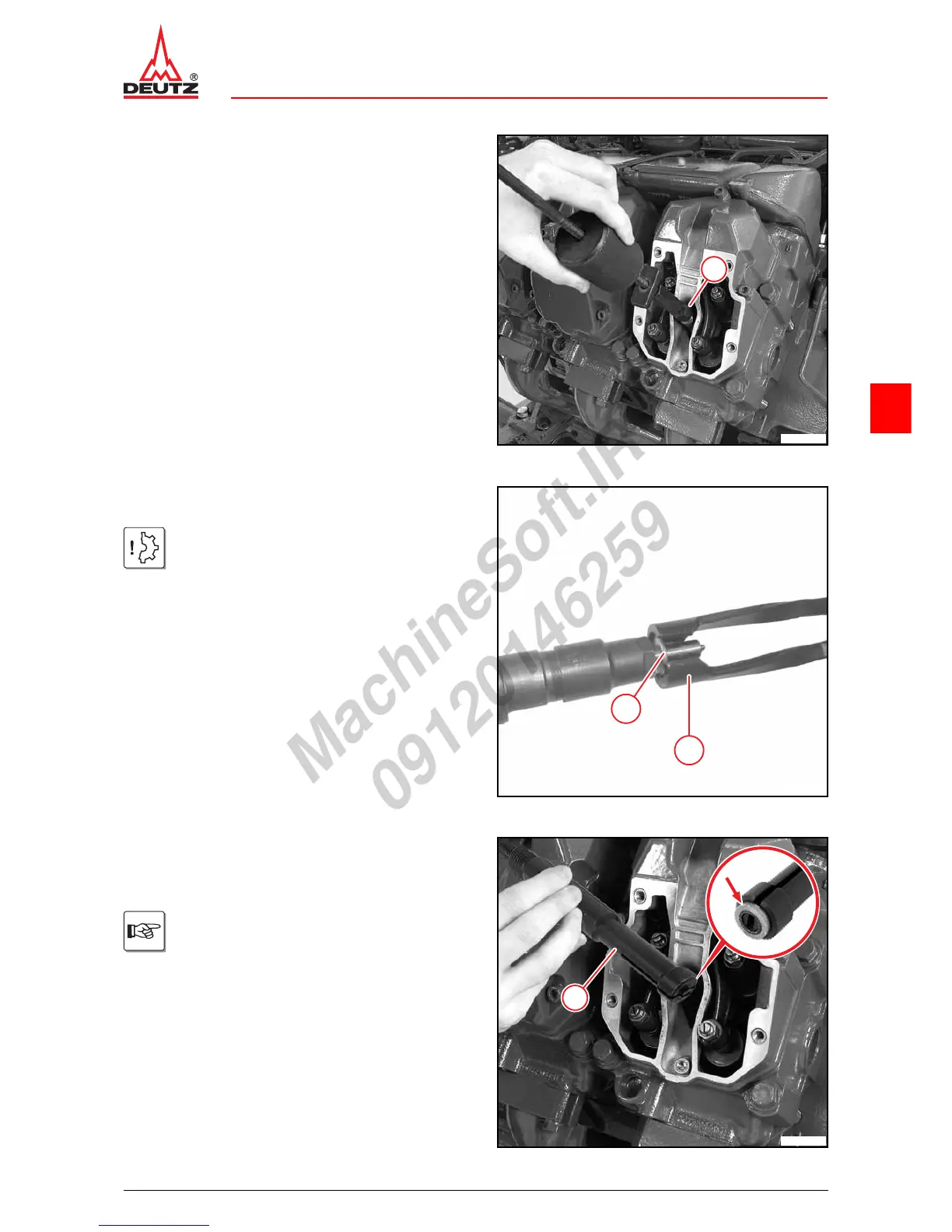

z Mount sliding hammer on fuel injector.
z Screw on lock nut (1).
z Pull out stuck fuel injector.
1
© 40816-0
z Grip a tight sealing ring (1) with the assembly
pliers (2) and pull off, turning slightly.
Attention!
Do not damage the nozzle tip!
1
2
© 43303-0
Removing a tightly fixed sealing ring from
the cylinder head
z Insert extraction device (1).
The holders (arrow) must sit in the bore of
the sealing ring.
1
© 45419-0
