© 06/2006 8150-001
1/4
TCD 2015
Cylinder head
W 01-01-01
6
Setting valve clearance
Commercial available tools:
– Rotation angle disc . . . . . . . . . . . . . 8190
– Screwdriver insert for slot-
ted screws. . . . . . . . . . . . . . . . . . . . 8191
– Open wrench size 13 . . . . . . . . . . . 8196
– Locking agent
DEUTZ DW 59
– W 04-06-03
Allow the engine to cool down for at least
30 minutes before setting the valve clea-
rance. Engine oil temperature < 80 °C
The following work process describes set-
ting of the valve clearance on an exhaust
valve. The setting procedure for an inlet
valve is analogous under consideration of
the specified rotation angle size.

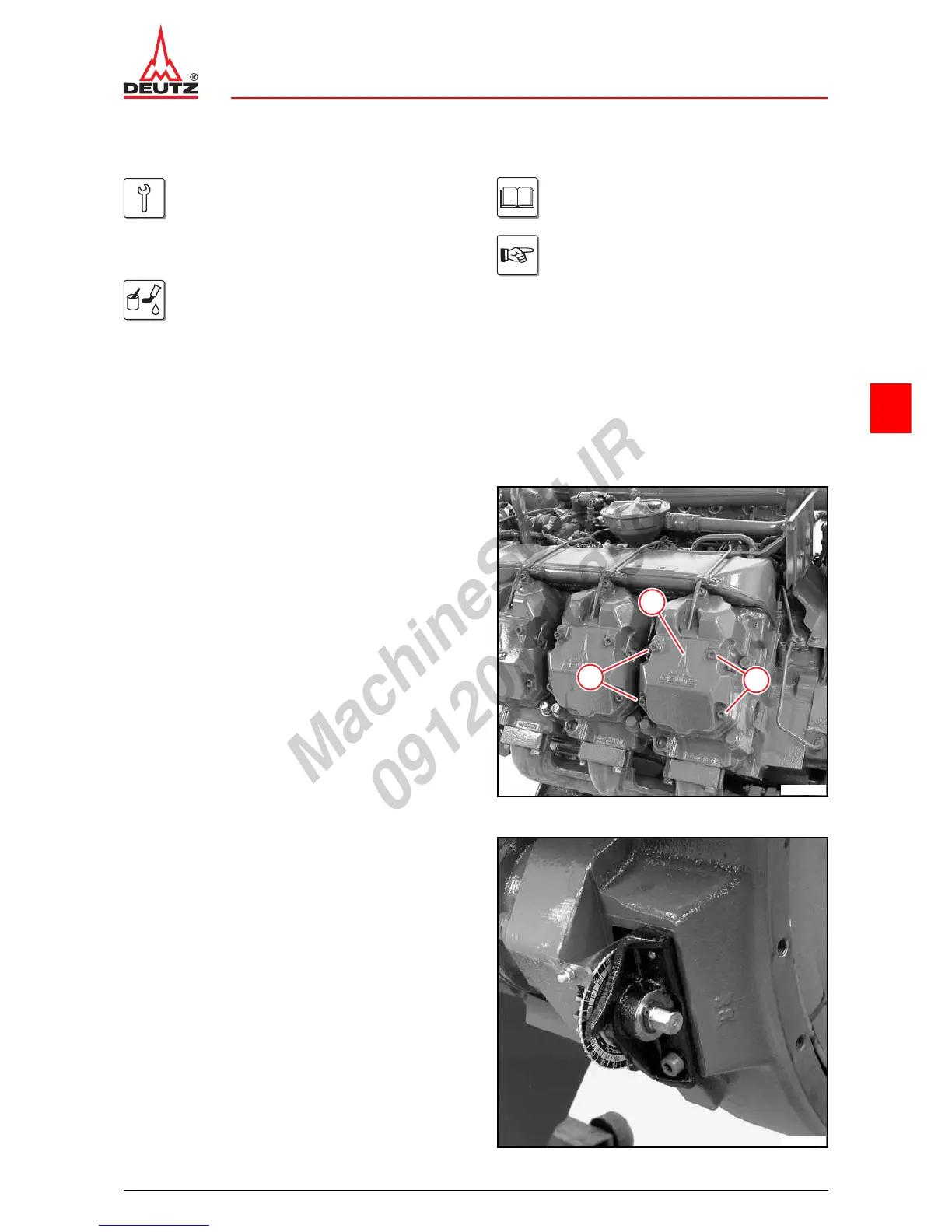

z Unscrew screws (1).
z Remove cylinder head cover (2).
z Remove gasket.
z Attach turning gear.
W 04-06-03
1
2
1
© 40627-0
Setting engine to valve overlap
z Turn crankshaft using the turning gear until the valve
overlap of cylinder A1 is reached.
T01 63
© 40463-1
