TCD 2015
Drive system
W 02-10-03
© 06/2006 8172-001
4/4
6

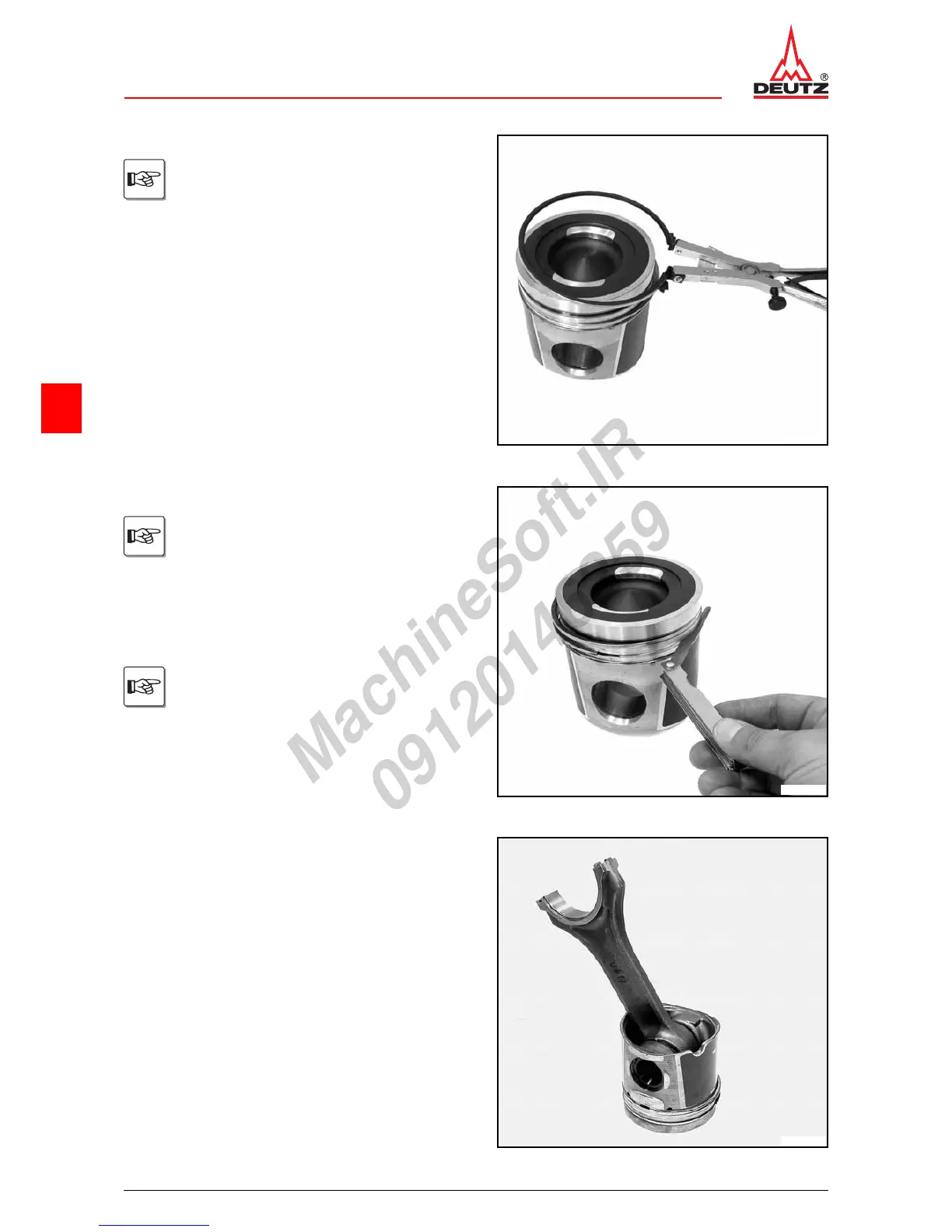

z Install piston rings with universal piston ring pliers.
Set spring joint of the bevelland-edge oil
control ring 180° to the ring joint.
© 42318-1
Checking the piston ring axial clearance
z Check axial backlash with feeler gauge between pis-
ton ring and piston ring groove.
P02 88
P02 89
Check with new piston rings.
When the piston wear limit is reached, the
piston must be renewed.
© 42317-1
z Install piston and connecting rod.
W 02-09-03
© 40592-0
