Deutz TCD 2015 - Installing Fuel Shut-Off Valve

© 06/2006 8211-001
3/6
TCD 2015 Railway
Fuel system
W 07-01-03
6

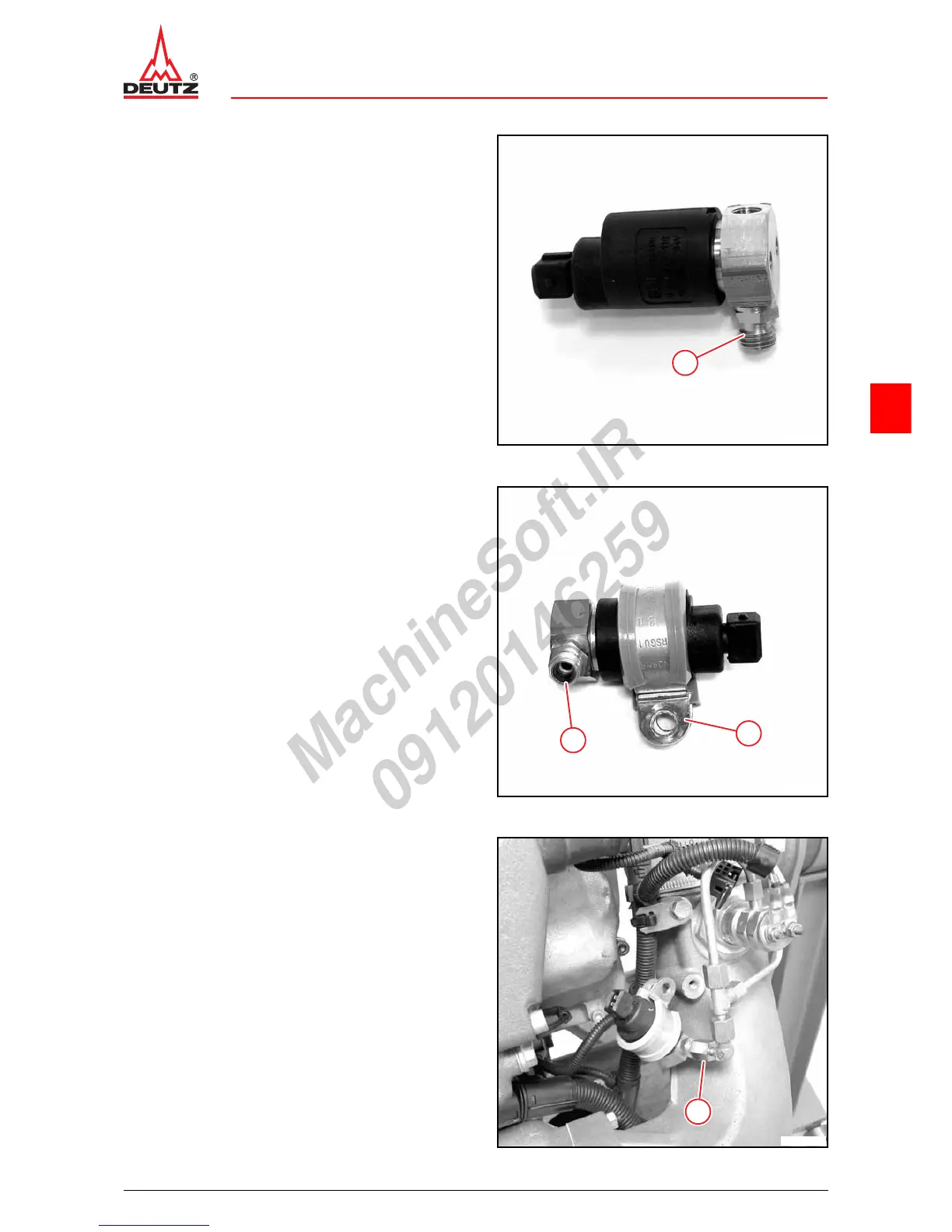

z Unscrew screw-in nipple (1).
z Visually inspect the components.
1
© 45913-0
Installing fuel shut-off valve
z Tighten screw-in nipple (1).
 A07 068
z Mount pipe clamp (2).
2
1
© 45912-0
z Screw on lock nut (1).
1
© 42024-1
