Deutz TCD 2015 - Page 458

TCD 2015 Railway
Fuel system
W 07-01-03
© 06/2006 8211-001
2/6
6

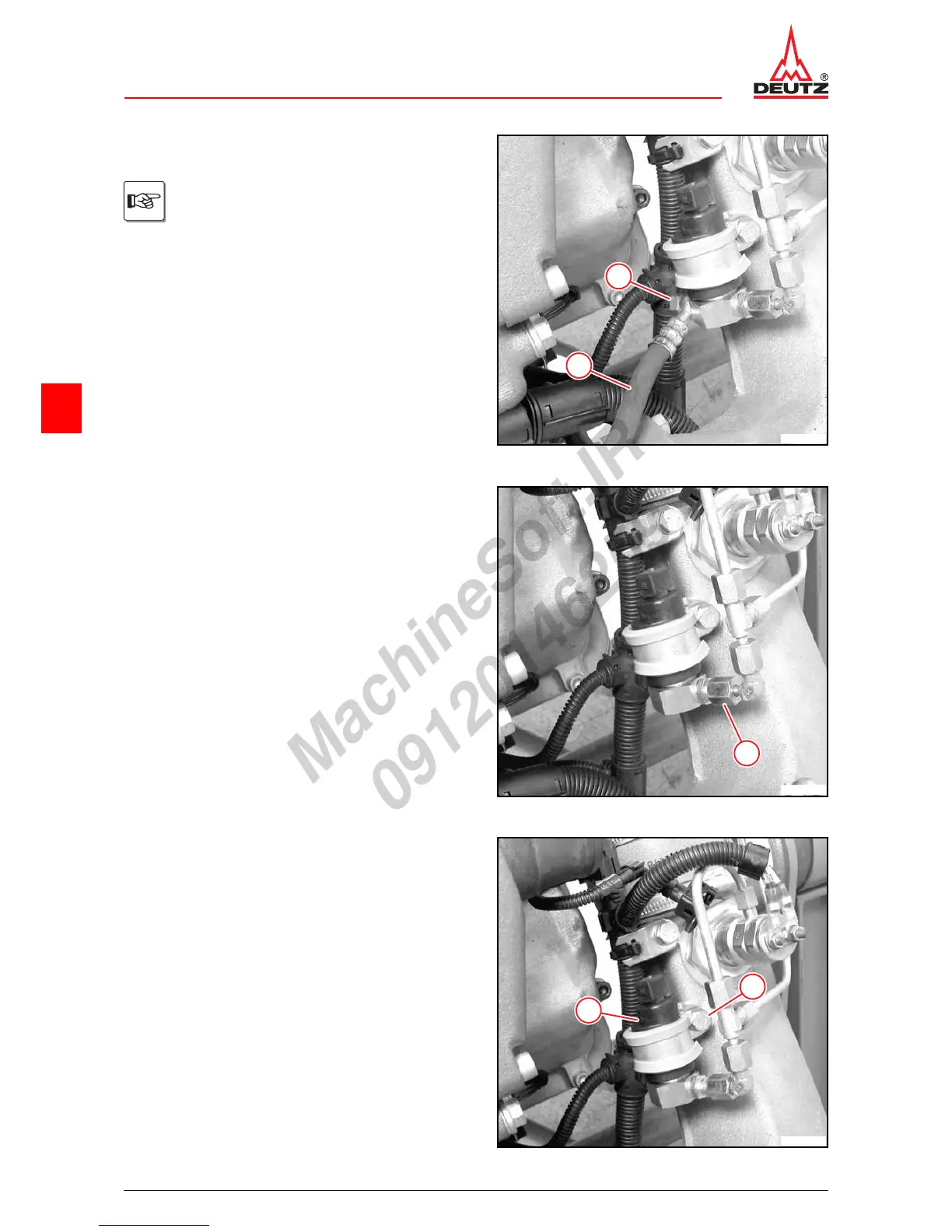

z Unscrew hollow screw (1).
z Remove sealing rings.
z Seal hose pipe (2).
z Place hose pipe (2) to one side.
Collect draining fuel and dispose of accor-
ding to regulations.
1
2
© 42021-1
z Hold screw-in nipple.
z Unscrew lock nut (1).
1
© 42022-1
z Unscrew screw (1).
z Remove fuel shut-off valve (2).
z Remove pipe clamp.
1
2
© 42023-1
