Deutz TCD 2015 - Mounting Engine on Assembly Block and Demounting; Mounting Engine on Assembly Block

© 06/2006 8149-001
1/6
TCD 2015
General
W 00-05-01
6
Mounting engine on assembly block and demounting
Commercial available tools:
– Lifting gear
– Suspension ropes
Special tools:
– Assembly block incl. adap-
ter plates . . . . . . . . . . . . . . . . . . . . . 6066
– Clamping bracket . . . . . . . . . . .6066/151
– W 13-02-03
Different customer scopes are not taken
into account in the repair sequence shown
here, accessories which deviate from the
standard equipment are not shown.

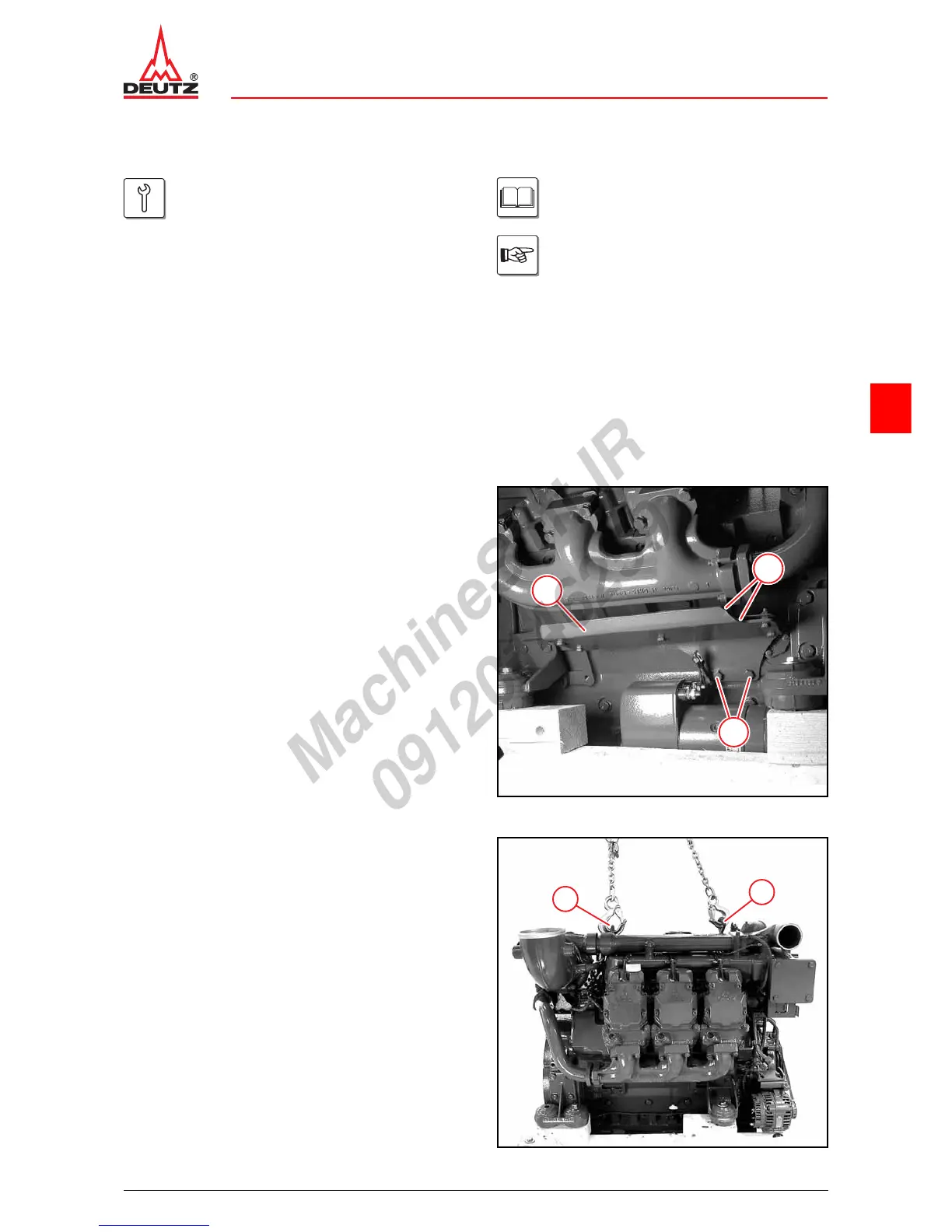

Mounting engine on assembly block
z Remove generator.
 W 13-02-03
z Unscrew screws (1).
z Remove heat shield (2).
1
1
2
© 40644-1
z Screw in eyelet bolts (1).
z Hang engine on workshop crane.
1
1
© 40645-0
