TCD 2015
Fuel system
W 07-06-04
© 06/2006 8218-001
10/14
6

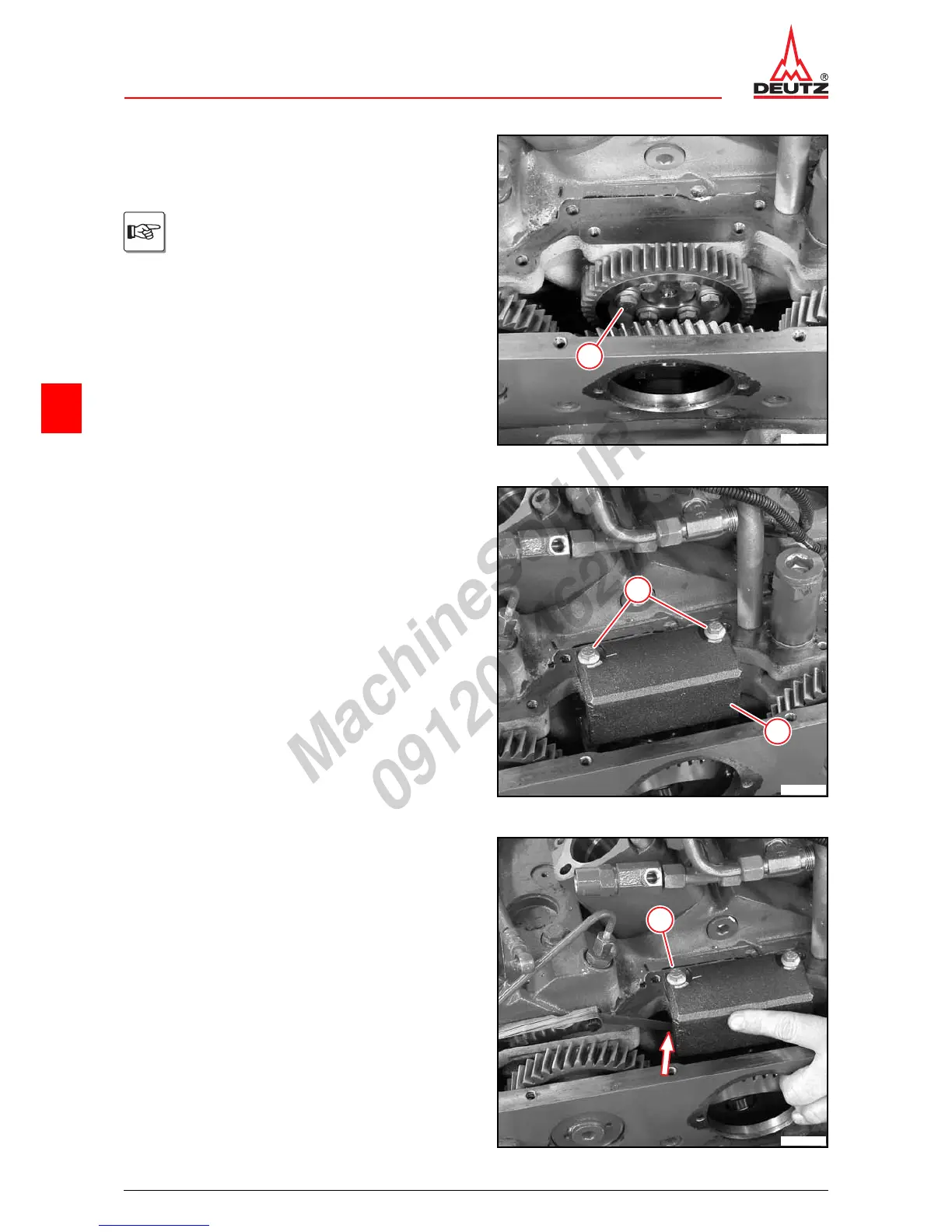

z Tighten all screws (1).
A04 004
z Pull locking pin.
Concealed screws can be accessed by
turning the crankshaft with the turning gear.
1
© 40464-0
z Mount pad thrust bearing (2).
z Lightly oil screws (1).
z Tighten screws (1).
1
2
© 40989-0
Checking and setting axial backlash of the
injection pump camshaft
z Insert feeler gauge blade between gear wheel of the
injection pump camshaft and the pad thrust
bearing (arrow).
z Press the pad thrust bearing onto the feeler gauge
blade.
z Fasten screw (1).
z Check axial backlash.
P04 43
1
© 40512-0
