© 06/2006 8182-001
5/8
TCD 2015
Crankcase
I 03-10-05
6

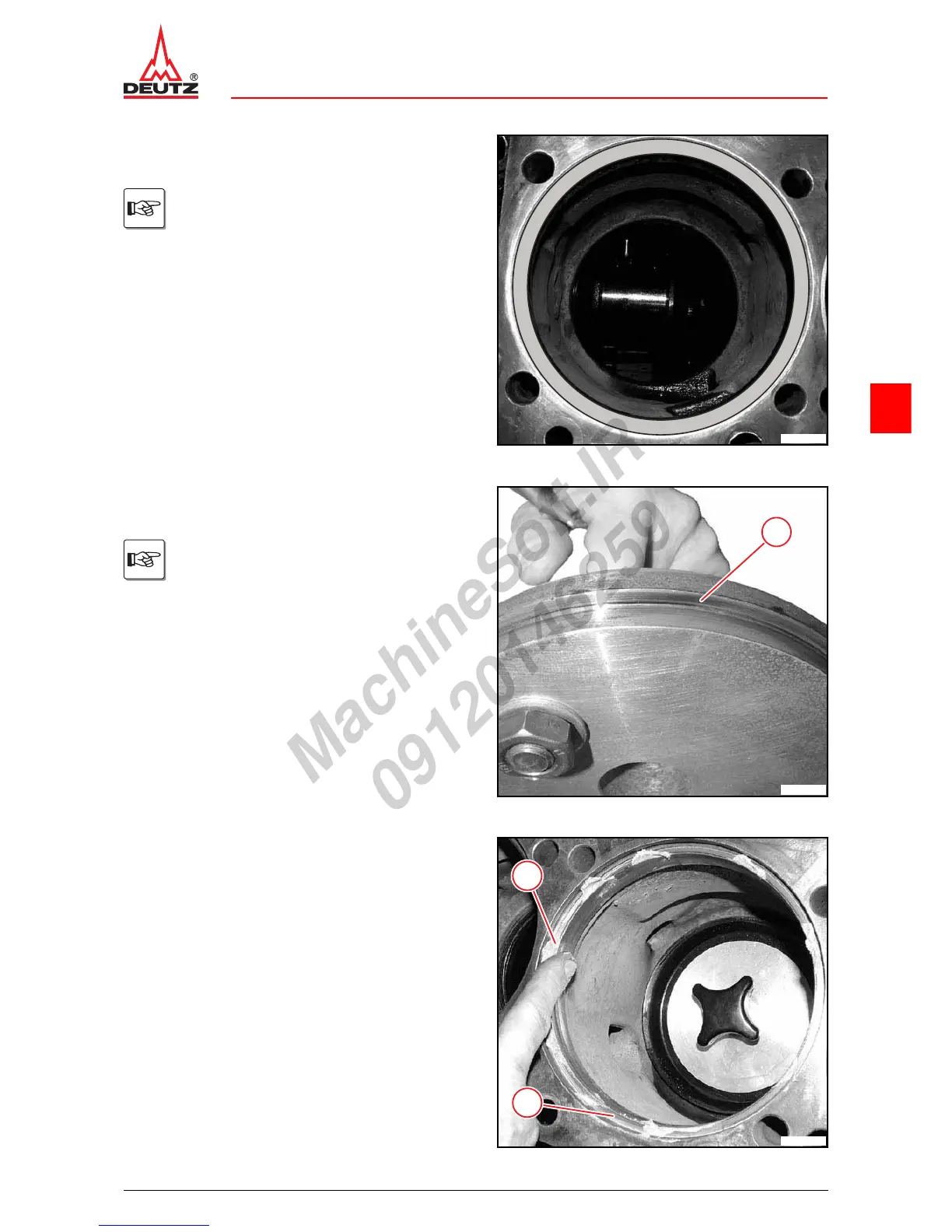

Check
z Check the contact pattern.
z Clean the collar rest.
An even contact pattern must exist.
Otherwise, repeat the grinding and sur-
face process.
© 39912-0
Regrinding
z Move the bracket on the griding/surface plate.
Grinding side “A“ faces down.
A
© 39904-0
z Apply post-grinding paste (1) to the collar rest (2).
z Add a little clean water.
1
2
© 39907-0
