Cylinder head
W 01-02-06
6

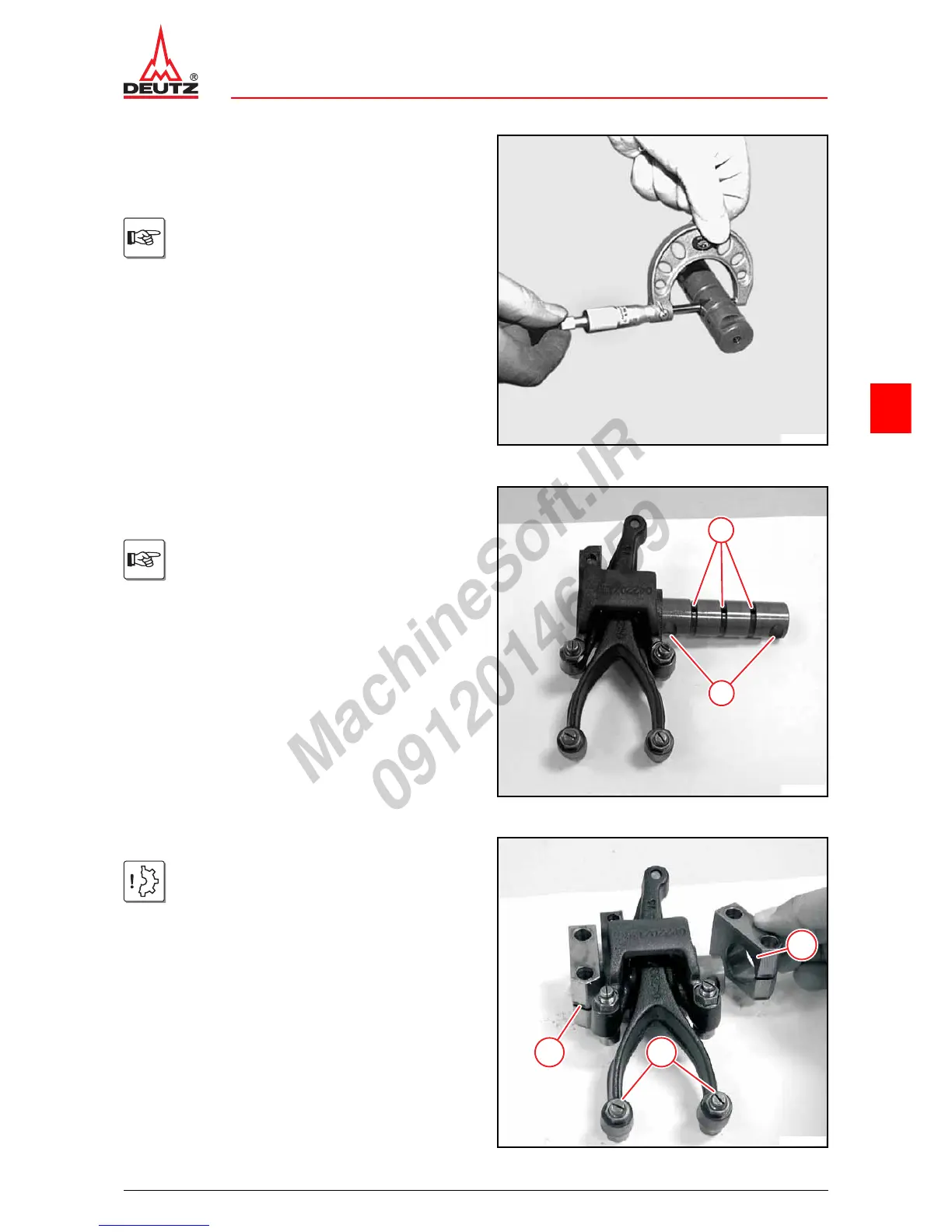

Checking rocker arm shaft
z Measure diameter with micrometer gauge.
P01 74
z Check oil channels for free passage.
When the wear limit is reached the rocker
arm shaft must be renewed.
© 34834-2
Assembling the rocker arm bracket
z Push rocker arm onto rocker arm shaft.
The oil bores (1) must face upwards and
the recess clearances (2) for the screws of
the rocker arm brackets to the adjusting
screws.
2
1
© 36751-1
z Push rocker arm brackets onto rocker arm shaft.
Attention!
The longer side (1) must point upwards.
The clamping grooves (2) must face the
adjusting screws (3) .
3
1
2
© 45385_1
