Deutz TCD 2015 - Removing and Installing the Valves

© 06/2006 8156-001
1/4
TCD 2015
Cylinder head
W 01-05-01
6
Removing and installing the valves
Commercial available tools:
– Slide gauge
– Assembly pliers. . . . . . . . . . . . . . . . 8024
– Assembly lever . . . . . . . . . . . . . . . . 9017
Special tools:
– Support bracket . . . . . . . . . . . . . 120900
– Base plate. . . . . . . . . . . . . . . . . . 120910
– Assembly tool . . . . . . . . . . . . . . . 121410
– Assembly sleeves . . . . . . . . . . . . 121420
– W 01-04-04
Removing the valves
z Remove cylinder head.
 W 01-04-04

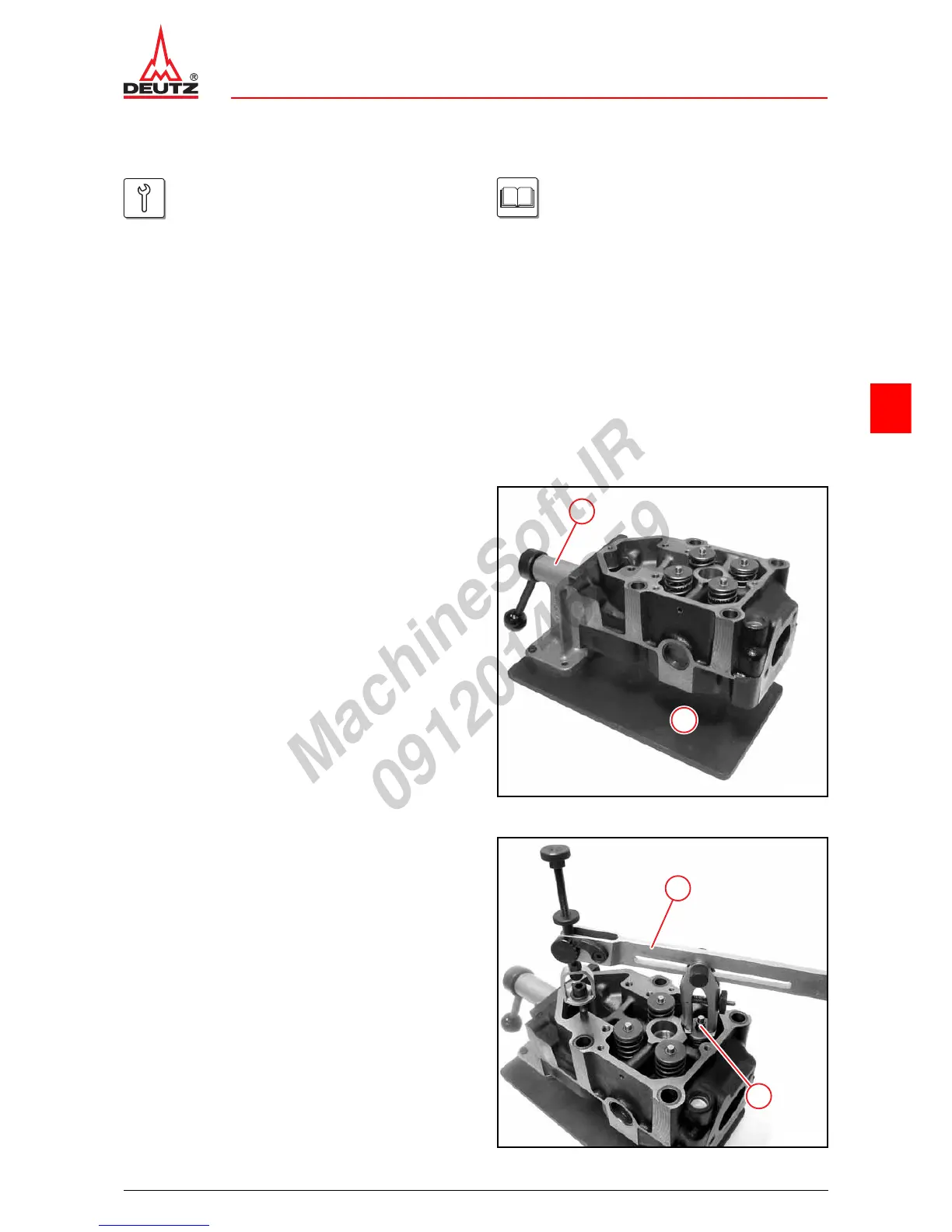

z Mount support bracket (1) on base plate (2).
z Mount cylinder head on support bracket.
2
1
© 42227-1
z Install assembly lever (1).
z Press down valve spring with assembly lever.
z Remove both tapper collets (2).
z Remove valve spring plates, valve springs and
valves.
z Remove assembly lever.
2
1
© 42337-1
