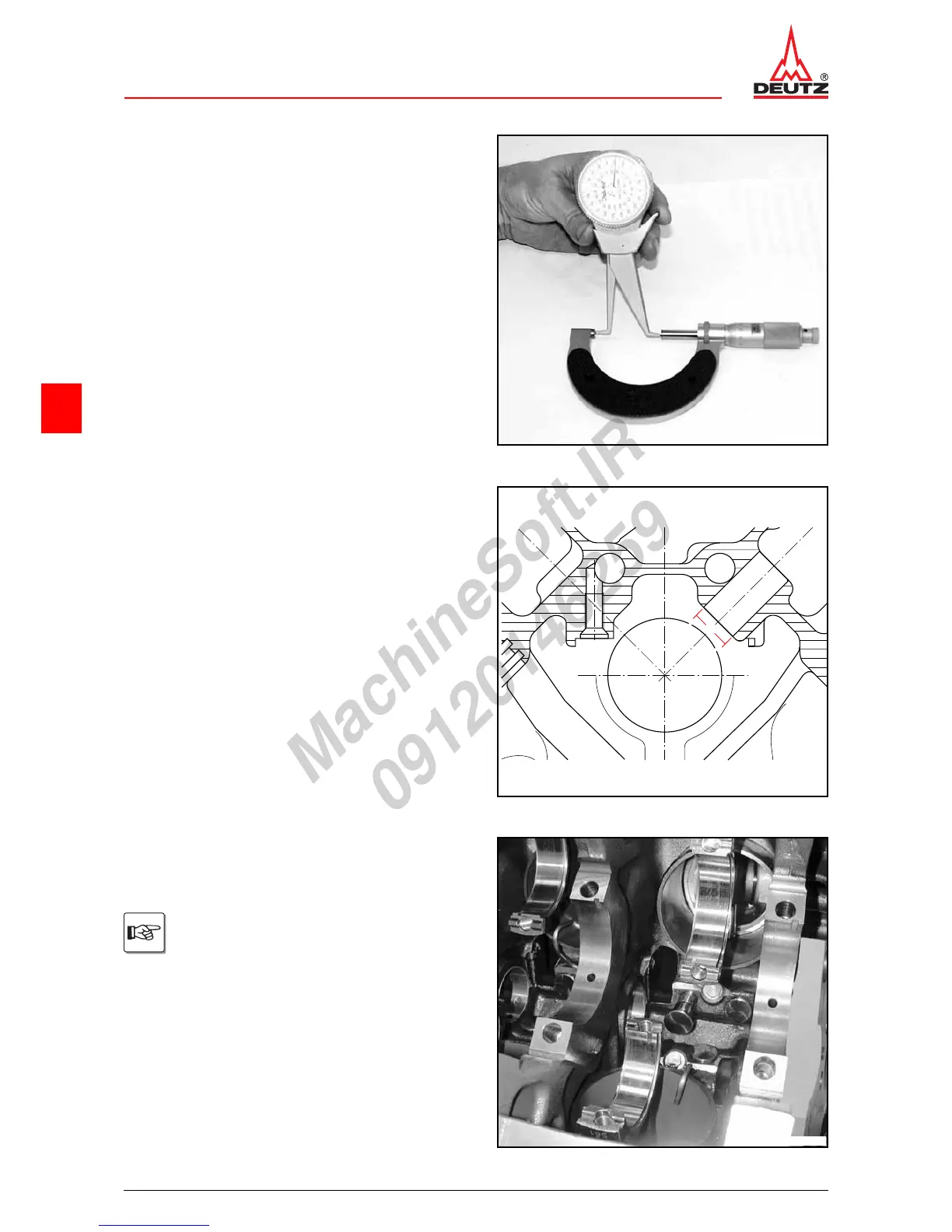

Measuring tappet bores
z Set micrometer gauge to 25 mm.
z Push the internal measuring device between the test
surfaces of the micrometer gauge and set to "0".
© 35825-2
z Measure tappet bore with internal measuring device.
 P03 23
P03 24
X
© 34707-4
Installing tappets
z Oil all tappets lightly.
z Insert all tappets.
z Install the camshaft.
 W 04-05-05
Note the assignment of the tappets.
© 37199-1
